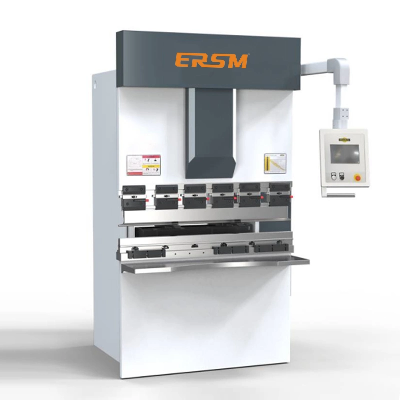

Simple Handling Ergonomics Rotating Arm Oil-Electric Hybrid CNC Bending Machine

Product Features• The servo oil-electric hybrid system uses two servo motors and servo pump to control the left and right cylinders• The servo motor controls the output flow of the oil pump according to the program setting, and then controls the movement speed and position of the slider• The whole process has no throttling phenomenon• The distribution of oil is basically on demand, without throttling loss, which can realize the real sense of energy saving• The application of servo motor greatly reduces the energy consumption of the system in the working gap• Excellent energy saving effect, energy saving rate of 70%Product ParameterModelPBB-35T1250PBB-50T1650Force350KN500KNMax. Bending Length1250mm1650mmDistance Between Uprights900mm1200mmOpening Height385mm385mmThroat Depth200mm300mmCylinder Stroke120mm120mmMain Power4.4KW2*4.4KWOil70L2*70LUpper Beam SpeedApproaching Speed300mm/sApproaching Speed300mm/sWorking Speed0-20mm/sWorking Speed20mm/sReturning Speed250mm/sReturning Speed250mm/sBack Gauge Speed X AxisStroke450mmStroke450mmMax. Speed450mm/sMax. Speed450mm/sBack Gauge Speed R AxisStroke140mmStroke200mmMax. Speed75mm/sMax. Speed75mm/sMachine Dimensions1650*1210*2245mm2180*1340*2385mmWeight2900kg4300kgFAQ1. Who are we? A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office. 2.Which payment terms you can accept?A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation. 3.Which shipping way can you provide?A: We can provide shipping by sea, by air, by express and etc according to customer requirements. 4.How to place order? A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.    5.Do you have an inspection procedure for the product?A: Yes, We have a strict inspection of product quality and packing.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
