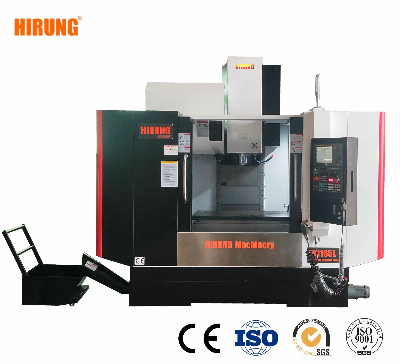

X 1100mm CNC Milling Machine, Milling Machine, Vertical Machining Center EV1165L

2019 Most Popular  high speed CNC Milling Machine /CNC Vertical Machine Center (EV850L)Price is different accroding the configurations .Basic Info.       working video   https://hirung.en.made-in-china.com                                                               Milling Cutter Type: Vertical Milling Cutter                         Automatic Grade: AutomaticPrecision: High Precision                                                    Type: Tool Milling MachineProcessing Type: MetalX,Y,Z Motor Type: Servo Motor                                        Warranty: 1 Year HS Code: 84571010                                                             positioning precision:±0.005mmn JISrepeatability positioning precision: ±0.0025mm JIS                                                                   (the machine's casting structure)                                                 Product Description    Features      1. High tensile strength meehannite cast iron      2. "A" type column with bigger span       3. Japanese THK or similar grade precise ball screw      4. Arm type automatic tool change with 24 tools      5. Full splash gurard High performance, high efficiency, high stability, economical vertical machining center.,,,,,,,,,,.All the castings adopt high quality and high stability Germany Meehannite cast iron and digitizing metal formula to ensure the quality of castings. FEM analysis is used to analyze castings and computer is used to calculate and analyze so as to strengthen the design of organization structure, enhance the rib configuration, optimize the casting structure and enhance the rigidity of whole machine. ,"A","","";"A" type column has bigger span in base to ensure rigidity and stability.,,,,;Saddle is wider and thicker to ensure the ability of heavy duty when processing.,;In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column  and provides great support.,,,.All the parts are Germany, Japan and Taiwan imported components to ensure the durability and long-term stability of machine.  THK,,,Three axes roller ball screw adopt Japanese THK or same level ball screws which use the method of direct connection and pre-stretching to ensure the accuracy of machine. THK,,,,,.Three axes adopt Japanese THK or same level linear guideways which have the advantages of small friction, short rapid transit time and high efficiency. And the excellent repeated positioning accuracy can realize the high processing accuracy. 12000rpm,,,,,,.:8000rpm/10000rpm,15000rpm.It adopts 12000rpm high speed direct-type spindle equipped with spindle oil cooler device to keep spindle in a state of constant temperature. Compared with general spindle, it has the advantages of fast speed, high stability and long working life.(Optional): 8000rpm/10000rpm belt-type spindle,5000rpm direct-type spindle.    Packing & Delivery Packing Details : To be packed in wooden cases,suitable for export.Delivery Details : 25~35 days after receipt of deposit SpecificationsItemsEV850L   TravelX-axis travel800mmY-axis travel500mmZ-axis travel500mmDistance from spindle nose to work table160-660mmDistance from spindle center to column599 mmTableTable size550*1000 mmMax. table load600kgT-Slot size18/5 mmSpindle BT-TypeBT-40Spindle max. speedDirect  type12000TurretTool magazine 24 (OP 32)Tool change time 1.3sec.Motor Spindle power (kw)7.5 /11kw3-axis power (kw)X/Y/Z:2.0 kw FeedrateCutting feed rate0-10000MM/minRapid feed rate  X/Y:48000 mm/min Z :36000 mm/minOther Air pressure≥6 kgf/cm2Net weight6500kgFloor space(L*W*H)2700*2500*2730mmNC system MITSUBISHI M80B/FANUC 0iMFOther parameters machine model for choice    ItemunitEV640LEV850L/MEV1060L/MEV1165LEV1270L/MEV1370LEV1580EV1890X/Y/Z-axis travelmm600/400/450800/500/5001000/600/6001100/650/6001200/700/7001300/750/7001500/800/7001800/900/800Table sizemm420*700500*1050600*1300660*1200700*1360700*1400800*1700900*2000Max.table loadKG350600100010001400140020002000BT-Type BT40BT40/50BT50(OPBT40)Spindle max. speedrpm12000Belt type 10000 (op 12000/15000)6000Spindle powerKW5.5/7.57.5/117.5/11(op11/15) 11/15(op15/18.5)Cutting feed ratemm/min0-200000-100000-8000Rapid feed ratem/min48*48*36 L:48*48*36M:20*20*15L:36*36*30M:20*20*15L:36*36*30L:30*30*24M:20*20*1530*30*24 X/Y:16Z:14X/Y:16Z:14Net weightKG45005800  65006800750080001200015500NC SystemMITSUBISHI M80B   /   SIEMENS 828D   /   FANUC  OIMF                 Economical :EV640LE/850LE  GSK25i)HIGH   LEVEL  Standard Configuration1,Total Splash Guard2,24 Arm Type ATC 24 Tools3, 12000rpm Direct  Type Spindle4,Cutting Coolant System5, Automatic Centralized Lubrication System6,  Heat Exchanger for Electric Cabinet7, Manual Pulse Generator8,RS232   RS232 Interface9,    Working Light10,  Tricolor Caution Light11  Basic toolbox12 Leveling Bolts and Blocks  Serial No.STANDARD CONFIGURATIONORIGIN1Mitsubishi M80B ControllerJapan2Inseat Display UnitJapan3Imported BT-40  12000 RpmTAIWAN4Level C3 Ball ScrewTAIWAN HIWIN/PMI5Three-Axis Flex
