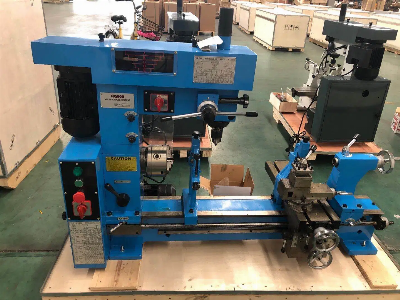

Combination Lathe Combined Lathe Dill Mill Turing Hq800

Machine Feature :1)A kind of combination machines with turning, milling, drilling and threading.2)Metric or imperial thread cutting3)Suitable for processing metal, wood and other materials4)Excellent advantage of various functions, small occupation and economization5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.  MULTI-PURPOSE MACHINEHQ500                   HQ800TURNINGSwing over bed420mm420mmDistance between centers500mm800mmMax. longitudinal travel440mm                               740mmMax. cross travel200mm200mmTaper of spindleM. T. 4M. T. 4Spindle holeφ 28mmφ 28mmStep of spindle speed77Range of spindle speed160-1360r. p. m160-1360r. p. mBarrel travel70mm70mmTaper of centerM. T. 3M. T. 3Metric thread range0.2-6mm0.2-6mmInch thread range4-120T. P. I4-120T. P. ILongitudinal range of automatic feeding0.05-0.35mm  /  0.002-0.014 inch0.05-0.35mm /  0.002-0.014 inchCross range of automatic feeding0.05-0.35m    /    0.002-0.014 inch0.05-0.35m /  0.002-0.014 inchDRILLING & MILLINGMax. drilling capacityφ 22mmφ 22mmWorktable size (L*W)475× 160mm²475× 160mm²Max. end millφ 28mmφ 28mmMax. face millφ 80mmφ 80mmDistance between spindle center and column285mm285mmDistance between spindle and worktable306mm306mmHeadstock travel of up and down110mm110mmSpindle taperM. T. 3M. T. 3Step of spindle speed1616Range of spindle speed120-3000r. p. m120-3000r. p. mSwivel degree of headstock± 360°± 360°MOTORMotor power0.55Kw/0.55Kw/SHIPMENT DATAPacking size1130× 580× 1100mm           1430× 580× 1100mmN. weight/G. weight245kg/280kg             : 275kg/325kgLoading amount40pcs/20' container                                 32pcs/20' containerStanadard accessories:Change gears,Center, Tool post wrench ,Wedge,Allen wrench,3-jaw chuck and wrench,Tie rod, Drill chuck arborOptional accessories :1.Machine stand2.Toolpost cover3.Leadscrew cover4.Drill chuck cover5.chuck cover6.Steady rest7.Follow rest8.mill cutter holder10.Drill chuck11.Lathe tools(5pcs)12.Face plate(240mm)14.4-jaw chuck 160mm /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
