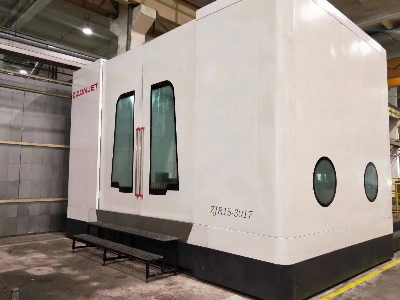

Fanuc Drilling Inclined Hole CNC Drilling Machine for Mould Makingzjr13-1613

Product applicationDeep hole drilling machines are mainly used in the industries as following:Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.-Hydraulic machinery industry: valve, distributor and pump,etc.. -Automotive industry: cylinder, fuel supply system and other parts-Aerospace industry: the propeller, landing gear and other parts.-Chemical and generator industry: heat exchange parts.ZJR series CNC deep-hole drilling machine is automatic and multifunctional, majoring in deep-hole drilling and cutting, while milling function is also professional. With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.1.FANUC 0i -MD CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.2.FANUC servo motor for six coordinate axis and main axis: good characteristic and perfect low speed performance.3.With high-precision ball screw bar and rolling linear guide, the operating components make positioning accurately.4.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.5.ZJR series CNC deep-hole drilling machine is mainly used for extremely difficult processes of deep-hole in mold industry. It's spoken highly of its high-efficiency, low-cost, humanized technological process. Technical Specifications ofZJR Series Six-Axis CNC Deep-hole Drilling Machine Tool    ItemsZJR13-1613 Processing CapacityDiameter of the Hole for Gun Drill3~35 mm Maximum Depth of the Hole for Gun Drill1300 mm   Processing Range(X)Processing Range (from Left to Right) of the   Working Table1600 mm (Y) Processing Range of Sliding Table1300 mm (Z) Processing Range of Column600 mm (A)The Rotary Angle of RamThe Main Axis Turns upward 15 degrees, and down to 25 degrees Main AxisTaper Hole of Main AxisBT50 Maximum Speed of Main Axis6000 rpm PowerMain Axis Motor15kw XX Axis Servo Motor36N.m YY Axis Servo Motor36 N.m ZZ Axis Servo Motor36 N.m WW Axis Servo Motor27 N.m AA Axis Servo Motor36 N.m BB Axis Servo Motor53N.m Total Power60kw CNC Index TableBurdening30 ton (×)Measurement1200×1200 mm Cooling System()Pressure Range of Cooling Liquid2~15 MPa(Set 2~9 MPa) ()Flux of Cooling Liquid6~85 L/min Measurement & Weight(×)Floor Area of Machine Tool(Length*Width)8000×6200 mm Maximum Height of Machine Tool5400 mmWight of Machine Tool50tonSystemCNC SystemFANUC 0i-MF Milling FunctionMilling Range1900mm    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
