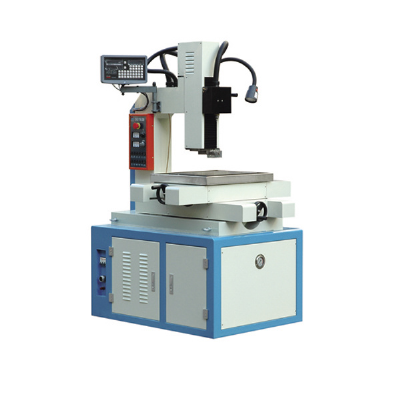

Dd703 High Speed Micro Hole Drilling EDM

DD703 High Speed Micro Hole Drilling EDM Technique parametersTechnique parametersunitDD703DD703.30DD703.32DD703.40Worktable sizemm320x440320x440360x610460x690Worktable travelmm200×300300×400320×400400x500Z-axis travelmm280300300300Max.load on tablemm200200200200Main spindle speedrpm60Diameter of electrodemmφ0.3-φ3MAX.distance from guider to worktablemm240300400500water tankL25Filtering model Shallow-gap filterWorking medium waterMAX.working pressureMpa7Power supply 380V,3Ph,50HzMax.woking currentA30Power consumptionKw3Machine weightkg70085013001700Machine demensionsmm1060×750×17001060×750×17601550×1170×18001800x1380x1800Products advantages1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more. 3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces. 4) It can water as workingfluid.5) It can become a machine with multi-axis numerical control or numerical display for the user requirement.Our FactoryOur Services1) Quality : We take care of the product quality in order to provide good service to our customers.2)Warranty: One year after shipment,consumables are not included.3)The quotation do not include installation and education training fee.4) Payment Method: T/T or L/C T/T 30% with the order, the rest 70% of total amount T/T before shipment.5) Delivery time : 20--25 days 6) Packing : Standard export wooden cases 7) Port: Shanghai or any China portFAQQ: Are you trading company or manufacturer ?A: We are manufacturer.Q: How long is your delivery time?A: Normally our delivery time is 15~20 days, but if we have the goods you want in our stock, then the delivery time will be in about two weeks or less.Q: Do you provide samples ? is it free or extra ?A: No, we could not offer the sample.Q: What is your terms of payment ?A: Term payment: T/T or L/CT/T30% with the order, the rest 70% of total amount T/T before shipment.Q: Could we use our own brand on your machine ?A: Yes, we could love to accept.Contact usCompany:Jiangsu Dongqing CNC Machine Tool Co.LtdAddress:East Suburb Development Zone,Taizhou city,Jiangsu Province,ChinaTel:0086-523-86290115Mobile:0086-15961059218     Web:topscnc.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
