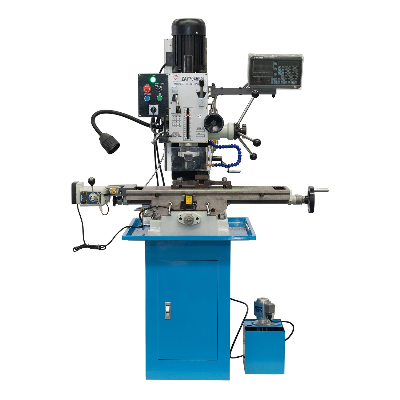

Drilling Cum Milling Machine Gear-Driven and Square Columnzay7025fg/ Zay7032fg/Zay7040fg/Zay7045fg

 1. FEATURES(1)    This machine may be used for surface cutting, drilling, milling, and tapping.(2)    This machine is of fine quality, can be operated easily, it is not limited to skilled operator.(3)    The drilling and milling operation can be performed by two methods:1)    Hand operation, which makes quick feeding drilling.2)    Worm gear feed operation, which makes slow feeding milling. (4)    Many of the adjustable nuts are bronze, for adjusting thread clearance and reducing wear. these bronze parts also allow screws to rotate smoothly and improve accuracy.(5)    The vertical column is very strong and stiff, which makes the machine very stable and improves accuracy of manufactured parts.(6)    The machine headstock is cast iron, it has been heat-treated, stress-relieved, and precision machined.(7)    Machine gears are precision ground for smooth operation.(8)    Speeds can be easily changed.(9)    Tapping can be done in either rotation, working depth can be controlled by using a positive stop gauge.(10)    The head can be turned in two rotation for a satisfying desired angle.     1.square column    2.lock screw   3.micro feed handwheel4.lock handle   5.feed handle   6.crank   7.handwheel8.cross lock screw   9. longitudinal lock screw  10.lock handle  11.shift handle   12.change speed handle  13.switch2.Model ZAY7032FG /ZAY7040FG/ZAY7045FG  Drilling cum milling machine MODELZAY7032FGZAY7040FGZAY7045FGMax Face mill capacity32mm40mm45mmMax End mill capacity63mm80mmEnd milling capacity20mm32mmMax.distance from spindle nose to table450mmMin.distance from spindle axis to column260mmSpindle travel130mmSpindle taperM.T.3 or R8M.T.4 or R8Step of spindle speed6Range of spindle speed   50Hz80-1250 r.p.m                                      60Hz    95-1500 r.p.mSwivel angleof headstock(perpendicularly)           90°Table size800×240mmForward and backward travel of table175mmLeft and right travel of table500mmMotor Power0.75KW(1HP)1.1KW(1.5HP)1.5KW(2HP)Voltage/frequencyAs customer's requirementNet weight/gross weight320kg/370kg, 325kg/375kgPacking size770×880×1160mmLoading amount36pcs/20containerStandrad accessories:Allen wrench, Wedge-Wrenches, Drill chuck arbor,  screw, draw bar and washersOptional accessories:1.Machine stand2.Power feed 3.90mm paraller vise4.120mm paraller vise5.Drill chuck6.milling cuttter holder7.Changing  sleeve8.Mill chuck9.Auto-tapping electrical10.Boring bar11.Working lamp12.Coolant system13.DRO/XY3.Machine photos4.Manufacturing Capability  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
