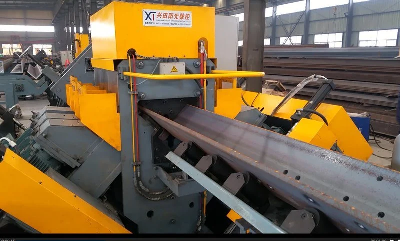

CNC High Speed Marking and Drilling Machine for Angle Model Jgz2532h

Applicable Industry:The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.Product Composition:This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.Product feature:1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, automatic unload conveyor and corresponding hydraulic station, electric cooling system.Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.2. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.3. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid withdrawing of spindles all are finished automatically.4. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.5. All marking and drilling in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.8. With self-diagnosis failures function.Special advantages:Space between our character groups is larger, which can accommodate bigger size character.Enclosed marking unit. It is more stable and safe. And it will prolong the life of marking unit.Minimum End piece length to minimize scrap. Machine suitable to Indian condition like motor of 415 volts, 50 Hz. We can provide chiller for hydraulic tank oil cooling to prevent damage of cylinder part due to oil temperature (optional but can be done on client request).POWER: Three phase four wire systems   AC Voltage: 380V or 415V for India   Fluctuation of voltage: ±5%   Frequency: 50Hz   Local working temperature: 0-40ºCSpecifications:ModelJGZ2532HAngle size(mm)130х130х10~250*250*32mmMarking force(kN)1030Max. length of blank(m)14Max. length of finished(m)14No. of drill on each side(piece)3No. of character group(piece)1No. of character in each character size(piece)15Character side(mm)14×10×19Range of back mark (mm)50-220 (stepless)CNC axes(piece)3Spindle rotation speed(r/min)6000 rpm,Transducer stepless adjustmentFeeding speed of angle(m/min)40Diameter of drilling(mm)Ф17.5~Ф40Stroke of Spindle(mm)180Processing precisionAccordance with GB2694-81Programming modeInput by keyboard, RS232 interface, floppy disk and USB interfaceOverall dimensions (mm)32000×7500×3150Gross weight of machine(kg)Approx.36800Total power(kW)75   Main Components List:No.NameManufacturerMain Electric Components 1PLC Japan YOKOGAWA2Servo MotorJapan YASKAWA3Servo Driver4Main motorZHENG HUA5TransducerINVT6Business ComputerChina Lenovo7Photoelectric SwitchAUTONICS8Proximity SwitchAUTONICS9Push buttonGerman SIEMENS10Indicator lightGerman SIEMENS11Contactor switchGerman SIEMENS12Stroke SwitchTaiwan TENDMain Hydraulic Pressure Components1Hydraulic ValvesItaly ATOSMain Pneumatic Components1CarriageUp CylinderTaiwan AirTAC2Clamp CylinderTaiwan AirTAC3Electromagnetic Gas-valveTaiwan AirTAC4Unload ConveyorOverturn CylinderTaiwan AirTAC5Electromagnetic Gas-valveTaiwan AirTAC   If any part model is upgrade or changed, we promise to use same quality level part to replace it.Spare parts list: NoName MaterialQty.Remark 1Upper clamping jawT10A2Including installed in machine2Nether clamping jawT10A2Including installed in machine3Character boxT10A2Including installed in machine4CharactersT10A2 setIncluding installed in machine5Proximity switchNormal open1AUTONICS6Proximity switchNormal close1AUTONICS7Proximity switch 1AUTONICS8Travel switchTZ-81041Taiwan TEND9Photoelectric switch 1AUTONICS10Combination pad 1 setsGB982-7711Reducing sleeveΦ17.5~Φ401 set 12O ringExported famous brand1 setGB1235-7613Tools with equipment1 set 14Standby paint1 pail 15Operation Manual & Attached Drawings2 sets   (Option unit) Cutting Unit (Max. Siz
