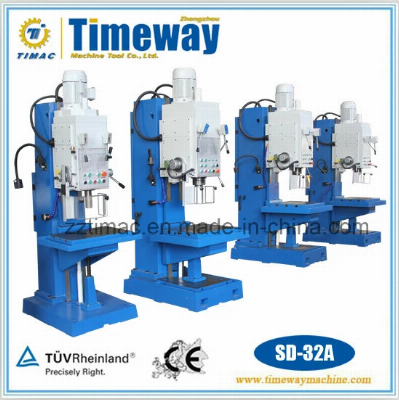

Box-Type Square Column Driller Machine

Knee Type Superior Rigidity Box-Column DrillerSD-25A    SD-32A     SD-40B    SD-40C     SD-50C    SD-50D Features:Superior rigidity for demanding drilling, reaming and thread-cutting tasks. Box-column design provides high load capacity, and is torsion proof and rigid. Table and drill head can be moved individually for an optimum machining height. 9-steps feed and speed gears, with oil-bath lubrication. High torque across the entire speed range. Thread cutting unit automatically reverses upon reaching the preset depth. Technical Parameter:SpecificationUnitSD-25ASD-32ADrilling capacity in steelmm2532Feed forceN90009000TorqueN.m160160Spindle taper-Morse No.3Morse No.4Distance from spindle center to column surfacemm280280Spindle quill travelmm200200Drilling head travelmm200200Spindle speed rangerpm50-2000(9steps)50-2000(9steps)Spindle feedsmm/r0.056-1.8(9steps)0.056-1.8(9steps)Vertical table travelmm310310Table setup areamm400x530400x530T-slot width/numbermm--Max. distance from spindle nose to tablemm710710Main motor powerkw2.22.2Coolant pumpW9090Flow rateL/min2525Overall dimension(LxWxH)mm962x847x2300962x847x2300Machine weightkg950950  SpecificationUnitSD-40BSD-40CDrilling capacity in steelmm4040Feed forceN1600016000TorqueN.m350350Spindle taper-Morse No.4Morse No.4Distance from spindle center to column surfacemm335335Spindle quill travelmm250250Drilling head travelmm200200Spindle speed rangerpm31.5-1400(12steps)31.5-1400(12steps)Spindle feedsmm/r0.056-1.8(9steps)0.056-1.8(9steps)Vertical table travelmm300300Table setup areamm480x560480x560T-slot width/numbermm--Max. distance from spindle nose to tablemm750750Main motor powerkw33Coolant pumpW9090Flow rateL/min2525Overall dimension(LxWxH)mm1040x906x25301040x906x2530Machine weightkg12501300  SpecificationUnitSD-50DSD-50CDrilling capacity in steelmm5050Feed forceN1600016000TorqueN.m350350Spindle taper-Morse No.5Morse No.5Distance from spindle center to column surfacemm335335Spindle quill travelmm300250Drilling head travelmm200200Spindle speed rangerpm45-862(9steps)45-850(9steps)Spindle feedsmm/r0.056-1.8(9steps)0.056-1.8(9steps)Vertical table travelmm300300Table setup areamm480x560480x560T-slot width/numbermm--Max. distance from spindle nose to tablemm755750Main motor powerkw44Coolant pumpW9090Flow rateL/min2525Overall dimension(LxWxH)mm1040x906x25301040x905x2530Machine weightkg13501300  Standard Configuration:  Coolant system Tapping feature Halogen work lamp Operating tools Operator manual Optional Configuration:Universal facing and boring head Coolant concentrate Accessory set MT4(8pieces) Reducing sleeve MT5/4 Detailed Images   Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.  Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyo
