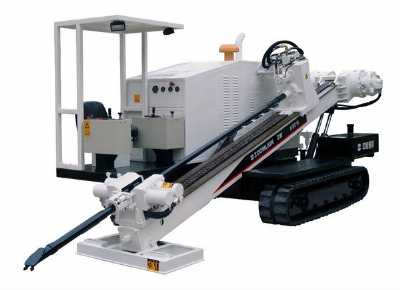

Horizontal Drilling Rig From China

  HORIZONTAL DIRECTION DRILLING RIGDrilling Modes                          This drilling system carry out 2 auxiliary drilling modes to meet different ground conditions.Discharge soil by compressed air while equipped with pneumatic hammer.Discharge soil by mud while equipped with mud system   STRUCTURE                          The machine comprises of rig and power pack.The rig consists of all working units such as traveling tracks, boom, stabilizers, clamps, rotary head. The actions of all working units are controlled by levers and buttons on control console.The power pack apply power for rig. It consists of diesel engine, hydraulic motors, hydraulic oil tank, fuel tank, cooler, electric system.The power pack connects with rig via hydraulic pipes and control cables. When moving together, connect them via tow bar.SPECIFICATIONDescriptionunitSpecificationDiesel Engine PowerkW125/132/140 Max TorqueNm7000/8300/9600Rotate speedr/min0~90/0~100/0~90Max. Thrust forcekN200/250/300Max. pullback forcekN200/250/300Max. bore diametermm600/700/800(depending on pipe material and ground condition)Max. bore lengthm200/250/300(depending on pipe material and ground condition)Drill pipe diameter and lengthmmΦ60/Φ73/Φ73×3000Pneumatic impact hammer diametermmΦ102Main pump capacity and pressure71/75/100ml/r  30MPaGuide instrument modelDCI  SE OR F5Air compressor pressureMPa≥1.2Air compressorm3/min≥15.5Mud pump pressureMPa≤10Mud pump capacityL/min240/240/240/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
