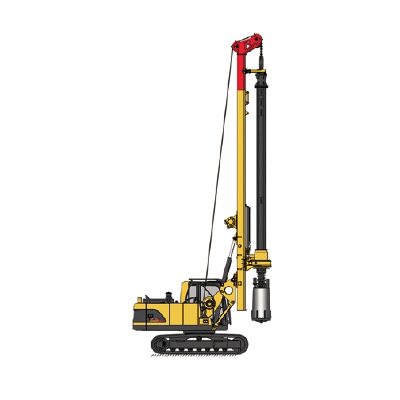

Yuchai Small Diesel Portable Ycr60d Rotary Drilling Rig

Yuchai Small Diesel Portable Ycr60d Rotary Drilling RigYCR60D small-scale rotary drilling rig integrates all the advanced technologies and construction methods accumulated by Yuchai Pile Workers, realizes the innovative use and upgrade of multiple technologies, has various technical highlights, and has reached the national stage III emission standards.    This model is specially designed for rural infrastructure construction, dilapidated house reconstruction projects, district and county real estate projects, municipal construction, railway reconstruction, transmission and transformation tower construction, and mobile base station construction.    It is equipped with imported power hydraulic systems. The performance is reliable and stable, the construction is efficient and fuel-efficient, the structure is delicate and safe, the transition is convenient and flexible, the stratum is adaptable, and the quality of the sunken pile is excellent. Parameter(Item)(Parameters)(Chasis)Engine typeQSF3.8-115/ Power/ revolution86kW/2200rpm()Deployment speed (margin)2600mmTrack shoe width600mmTraction104KN(Power head)The maximum out torque60kN·mPower head revolution0~35rpmThe maximum pressure increased55kNThe maximum pullout force80kNPressurizing oil cylinder stroke1500mm(Winch)(Main winch)Lifting force of the first layer70kNThe maximum lifting speed59m/minSteel wire diameter∅18mmAuxiliary winchLifting force of the first layer15kNThe maximum lifting speed50m/minSteel wire diameter∅12mm(Mast)Front inclination angle of mast5°Left and right inclinations of mast±4°(Hydraulic pump)The maximum working pressure of system32MPa(Hole depthand diameter)The maximum drilling diameter1.2mThe maximum drilling depth28m/22m(4/3)Weight at working state20 t()15.7t()19tDrill pipe(The standard configuration)∅299-4x7.6 m(optional configuration )∅299-3x7.6 m  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
