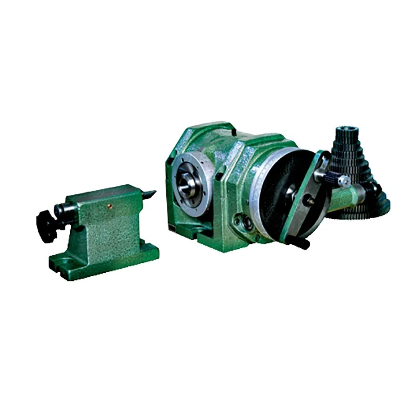

Fw80 F11 Series Universal Dividing Head

Product DescriptionThe universal dividing head,Type FW80,F11100A,F11125A,F11160A is one of the most important attachment for milling machine.With the help of this dividing head,the workpiece held between centers,or on a chuck can be rotate to any angle asdesired and the periphery of a workpiece can be divided into any divisions of equal parts.By means of all kinds of cutters,thedividing head can also help milling machine to perform the milling operation for flute,spur gear,spiral flute,Archimedeancam,helical flute and etc.The dividing head is equipped with a face plate that can be mounted onto the spindle nose.The workpiece can bemounted on the face plate,thus,cutting can be carried out on 4-sides of a workpiece.F11125C F11160C is designed for the consumers special needed,the shafting is improved to support heavy load.The universal dividing head,type F11100AL,F11125AL,F11160AL is the same as FW80 of the structures,and the operation handle is setted on the left. AccessoriesTailstockChange gear bracketChange gears Qty.12JackCenterCarrierHole plateFlange3-jaw chuckface plate(Optional)Product ParametersItemsFW80F11100AF11125AF11160AF11200ACenter height mm80100125160200Swivel angle of spindle from it horizontal position(upward)≤90°≤95°Horizontal position(downward)≤6°≤5°Rotating angle of spindle for one complete revolution of dividing handle9° (540 grad.,1'each)Min. reading of vernier10"Worm gear ratio1:40Taper of spindle boreMT3MT4MT4Width of loca t ing key.mm141822Diameter of short taper of spindlenose for mouning flange mmφ36.541φ41.275φ53.975φ53.975φ53.975Hole numbers on index plateA plate24,25,28,30,34,37,38,39,41,42,43B plate46,47,49,51,53,54,57,58,59,62,66Change GearModule1.52Teeth Numbers25,30,35,40,50,55,60,70,80,90,100Individual indexing error of the spindle for one complete revolution of dividing handle60"±45"Cumulate error at any 1/4 periphery of spindle±1'Max.bea ring Kg80100130 130130Net weight Kg36(63)67(104)110 (120)130135Gross weight Kg45(75)79( 120)126 ( 139)149155Case dimensions mm542×403×220616×465×265635×530×310710×535×342748×593×383FW80,F11 Series Installation sketch and dimensions:   ABCDEFGHLMNOPFW8013914777314777988010643306080F11100A1621410287186951161009354.730100100F11125A209181169822411712012510368.534.5100125F11160A209181169825915212016010368.534.5100160F11200A2092211698300192120200103108.534.5100200/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
