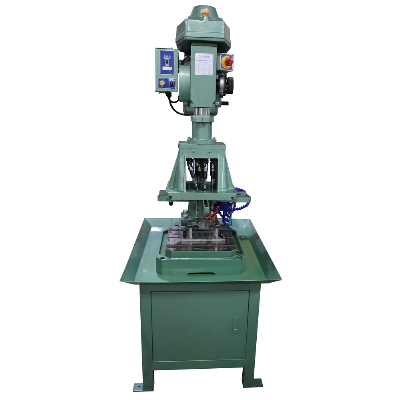

Tapping Threading Machine Automatic Cx-6516

Product Description8-Spindle Multi Holes Gear Type Tapping Threading Machine for Punching Cut Metal PartsModelCX-6516Spindle Travel65mmThread DiameterM2-M16Head Moving Scope Up and Down300mmDistance from Spindle Nose to Worktable350mmWorking Table Size720*650*680Base Size590*420mmMotor Power1.5kwVoltage220v/380v/415vSpindle Rotation50HZ:590/400/250rpm     60HZ:720/480/300rpmStandard Gear Pitch(mm)0.4,0.45,0.5,0.7,0.75,0.8,1.0,1.25,1.5,1.75,1.8,2.0,2.5Standard Gear Pitch(inch)10,11,12,14,16,18,19,20,24,28Multispindle CapacityM4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1Weight300-480kg1.Adopt the most advanced flow valve with beffering function,The feed force and speed is adjustable,effectively protect the service life of drill.2.Simple and quick operation,Easy maintenance,low maintenance costs. 3.Both drilling and feeding speed is adjustable,keeping pace with production. 4.Could be equipped with multiple axes,Drilling multiple holes at the same time,Greatly improves the production efficiency and save labor cost,Increasing the competitiveness.5.Adopt the highest standard fittings and parts,ensuring machinery durable and anti-abrasive.6.ChanSin is one of the leading manufacturers producing tapping and drilling machines, with more than 20 years of experience in this field.We have innovative,professional and dedicated work team,Our machinery quality is reliable and after-sales service is complete.Standard Type Drilling Machine Drilling MachineCX-8510CX-13016CX-15035Maximum Drilling Diameter10mm16mm35mmElectricity380V/415/440V 3 Phase380V/415/440V 3 Phase380V/415/440V 3 PhaseSpindle to Column Distance200mm210mm250mSpindle Nose to Work Table100-330mm100-350mm120-420mmSpindle Speed1400/2800 rpm1400/2000 rpm1000/1400 rpmMachine Head Travel280mm280mm320mmMotor Power0.75kw1.5kw2.2kwStandard Type Tapping Machine  Tapping MachineCX-4508CX-6516CX-6516Tapping Range1-8mm2-16mm5-32mmMachine Head Travel260mm300mm460mmSpindle Nose to Work Table90-350mm100-350mm100-600mmMulti spindle CapacityM2*16,M3*9,M4*5,M5*3,M6*2,M8*1M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1Motor Power0.75kw1.5kw2.2kwElectricity380V/415/440V 3 Phase380V/415/440V 3 Phase380V/415/440V 3 PhaseSpindle Stroke45mm65mm65mmDrilling and Tapping Heads CX-HD5-85 AIR/HYDRAULIC DRILLING HEADMaximum Drilling  φ1-φ10mmMain Spindle Taper   ER20/JT6Main Spindle    Travel 85mmSpindle Max Rotating Speed  1400 (r/min)Cylinder Area  21.6m2Center Height  70±0.01Motor 0.75KWNet Weight 38kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 115*464*370mm CX-HD6-130 HYDRAULIC DRILLING HEADMaximum Drilling  φ1-φ16 mmMain Spindle Taper   ER25/JT6Main Spindle Travel  130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area  forward 37.1m2  backward 15.8m2Center Height  70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H)  160*719*417mmCX-HD8-150 HYDRAULIC DRILLING HEADMaximum Drilling  φ1-φ35mmMain Spindle Taper   MT4/LINE GROOVEMain Spindle Travel  150mmSpindle Max Rotating Speed 1500 (r/min)Cylinder Area  forward 71.2m2  backward 31.4m2Center Height  90±0.01Motor 1.5KWNet Weight 67kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H)  280*860*470mmNon-standard Drilling & Tapping Machine Company Profile FAQ1. Are you a manufacturer or trade company? -- Manufacturer2. What is payment terms? -- 30% deposit, the balance will be paid before delivery3. What is the warranty time ? -- One year warranty and life time maintenance.4. Do you provide OEM service?-- Yes5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ? -- Shenzhen / Guangzhou port    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
