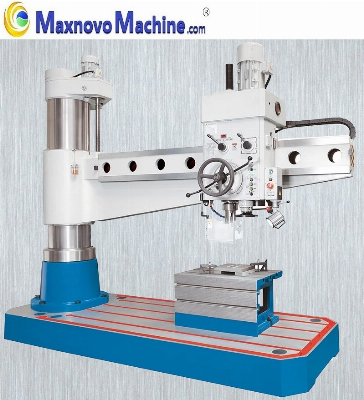

MM-R80V - Variable Speed Hydraulic 80mm Solid Radial Drilling Machine - MAXNOVO MACHINE Variable Hydraulic 80mm Solid Radial Drilling Machine (MM-R80V) This kind of MM-R80V is Variable Speed Hydraulic heavy duty Radial Drilling Machine with max. drilling capacity in steel up-to 80mm which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such high precision radial drill press feature step-less speed adjustment, Variable Speed Frequency Motor, solid construction and high user friendliness. The column is mounted to improve the position of the radial arm and therefore maximize work comfort - significant for longer operating times. This drilling machine is proven performance, quality, and cost-effectiveness which is ideal for drilling, countersinking, reaming and tapping. Product Description Precise Working, Solid Radial Drilling Machine Idea For Versatile Use In the Single Part and Series Production. The Max. Drilling Capacity is Ø 80 mm , Hydraulic Clamping Type, 7500W powerful Frequency Motor and Gross Weight 9650 KGS. The MM-R80V radial drilling machine is a universal machine tool with wide application, suitable for processing of medium and small parts in machinery manufacturing , such as drilling, flaring, reaming face, tapping and boring. Variable Speed Hydraulic Heavy Duty 80mm Solid Radial Drilling Machine with Frequency Motor - Perfect in every detail, powerful, rigid and easy to handle Main Feature : Convincing arguments : Quality, Efficiency and Price --MAX. Drilling Capacity in steel is 80mm diameter--Variable Speed with Advanced Variable Frequency Motor --Ideal for drilling, countersinking, reaming and tapping --Base, column, boom and gear head are made of premium high-quality cast --Radial arm, drill head and column each with hydraulic clamp --Major design features include a large column and a highly torsion-resistant boom --Complete with stepless speed , set speed is visible on digital display --Boom height adjustment via a powerful motorized drive and vertical spindle --Spindle features high concentricity and automatic spindle brake --The boom lifting gears run in an oil-bath for maximum reliability and minimum wear--Large base plate ideal for processing of oversize work-pieces --Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset --Torsion-free , polished column increases sliding capacity of radial arm --Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier --Lifting motor ensures easy height adjustment of radial arm keep spindle in position-ideal for repetitive operations --The gears feature hardened and precision-ground chrome-nickel steel gears for smooth and low-noise operation --Control switch allows for individual clamping or unclamping of drill head and column --All gear parts are lubricated reliably via oil pump --Guiderails on radial arm are hardened and polished --The main spindle runs on precision bearings and features an Automatic Spindle Brake --Counter weight on spindle to ensure optimal balance --Certificate of Original ( CO, FORM A, FORM E, FORM F ) Product Parameters Technical Data : Product Name :Variable Speed Hydraulic Radial Drilling Machine Product Item :MM-R80V Max. Drilling Capacity (in steel) : Ø 80 mm Max. Tapping Capacity (in cast iron) : M 60Max. Tapping Capacity (in steel) : M 52Max. Drilling Depth : 400 mm Clamping Type : Hydraulic Speed Type : Variable Speed with Advanced Variable Frequency Motor Working Area Machine Table Dimensions : 3380 X 1230 X 280 mm Cube Table Dimensions : 580 X 850 X 500 mm Throat (distance spindle-to-column) : 450-2550 mm Spindle nose-to-table surface distance :400-1620 mm Drill Head Travel (horizontal) : 2100 mm Arm Stroke (vertical) : 800 mm Column Diameter : Ø 450 mmHeadstock Spindle Speed Range : 30-1400 RPM Spindle Speed Steps : Variable Speed Spindle Mount : MT6 Feed Spindle Feed Range : 0.06-1.38 mm / Rev Spindle Feed Steps : 8 steps Drive Capacity Main Motor : 7500 W (Variable Frequency Motor) Stroke Motor : 2200 W Hydraulic Clamp Motor : 1100 WRocker Arm Move Speed up and down :1000 mm /min Drill Depth of Each Round of Dial : 151 mm Rotation Angle of Radial Arm : ±180 degree Connecting Voltage : Three Phase 400V Voltage Measures and Weights Machine Dimensions :3600 X 1250 X 3530 mm ( Length X Width X Height ) Packing Size : 3750 X 1400 X 2260 mm ( Length X Width X Height ) 3050 X 930 X 1030 mm ( Length X Width X Height ) Gross Weight : 9650 KGS Standard Accessory : Frequency Inverter Main Motor, Coolant system, Cube Table, Hydraulic Motor, Stroke Motor, Digital Readout, Work Lamp,Tools and Toolbox Our Advantages Guarantee of Quality The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.There are same or similar products on the market, however, those products could not
