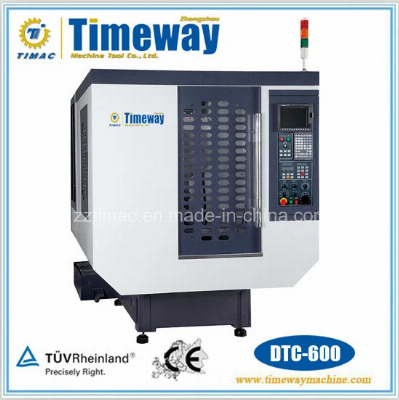

Vertical CNC Drilling and Tapping Center Machine (DTC-600)

Vertical CNC Drilling and Tapping  Center Machine Performance and Feature:1. Direct drive spindle, no belt spindle of noise and vibration problems. 2. Main structure uses the high quality of rice khan, cast iron castings, and the secondary annealing treatment, to ensure that structure of high rigidity, high stability, and permanent to ensure quality. 3. Casting through finite element analysis, the computer calculation and analysis, a reasonable structural strength and strengthened the collocation of floor, provide high rigidity of the machine. 4. Three axis adopt rail support, with lines that can support heavy load, fast moving, to ensure the positioning precision.  Standard Accessories:M70B controller system, Spindle blowing , Coolant system, Automatic lubracating system Rigid tapping , Umbrella ATC type(16T), CF card(1GB), Alarm lamp, Full closed cover  Tool box and manual operation  Optional Accessories:FANUC 0i-MD/Siemens 828D, 4th worktable , Spindle oil coolant , Spindle speed 15000/18000/24000rpm, 21 pcs ATC, Air condition for eletrical box  Automatic power off   Technical Parameters:Specifications UnitsDTC-500DTC-600DTC-700X-axis travel mm500600700Y-axis travel mm400400400Z-axis travel mm300300330Worktable size mm650*400700*420900*420Max. loading of worktable kg250350350T-slot(Number*width*space) mm3*14*1003*14*1003*14*125Distance from spindle nose to center of worktable mm150-450150-450160-460Distance from spindle center to columnmm420420505Spindle taper  BT30BT30BT30Spindle speed rpm120001200012000Spindle motor power kw3.7/5.53.7/5.53.7/5.5Rapid traverse speed of X/Y/Z axis m/min48/48/4848/48/4848/48/48Cutting feed rate of X/Y/Z axis mm/min1-100001-100001-10000Capacity of tool magazine  161616Max. tool weight kg333Max. tool length mm200200200Tool magazine type  Umbrella typeUmbrella typeUmbrella typeMachine weight kg230025002800Overall size(L*W*H)mm1760*2100*20001760*2100*20001960*1910*1950Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.  Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
