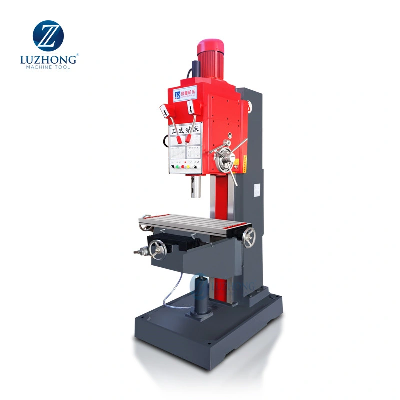

Vertical Drilling Z5140B Z5140B-1 Vertical Drilling Machinery

Vertical Drilling Z5140B Z5140B-1 Vertical Drilling MachineryProduct DescriptionDetailed PhotosProduct ParametersProduct description:1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.Product main technical specifications:SpecificationsZ5140BZ5140B-1Max drilling diameter(mm)4040Spindle taperMT4MT4Spindle travel250250Spindle box travel(manual)(mm)200200Spindle speed (steps)1212Spindle speed range(r.p.m)31.5~140031.5~1400Feed series99Feed range(mm/r)0.056~1.800.056~1.80Table size(mm)560x480800x320Table longitudinal(cross) travel(mm)-450/300Table vertical travel(mm)300300Max distance form spindle nose to table surface(mm)750750Main motor power(kw)33Overall size(mm)1090 x 905 x24651300*1200*2530N/W(kg)13001350  Company ProfileFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
