Variable Speed Bench Drilling Tapping Milling Machine for Metal Working

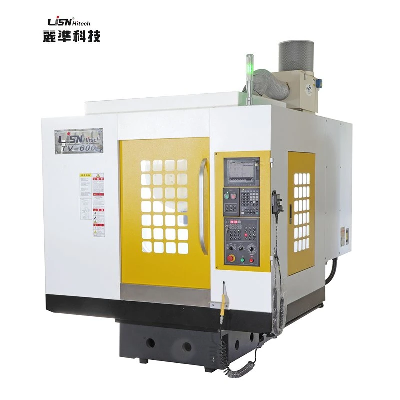

Product DescriptionThe machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient. The spindle motor and the spindle are designed to be directly connected, so there is no noise and vibration problem because there is no belt. The machine is equipped with a low-inertia spindle motor, which makes the acceleration time very short, from 0 to 12000RPM in one second. The Thermal Isolated Direct Drive System can effectively block the heat transmission of the motor to the spindle, and can significantly reduce the heat of the spindle. Detailed Photos  Product ParametersITEMMODELSTV600WORKTABLE (WIDTH*LENGTH) mm720x400DISTANCE BETWEEN T SLOTSmm3x14x125MAX LOAD BEARING OF WORKTABLEkg200X/Y/Z AXIS TRAVELmm600/400/300 DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm130-480SPINDLE HOLE TAPER-BT30SPINDLE SPEED RANGEr/min20000TRANSMISSION OF SPINDLE BOXBELT/DIRECTOptionalSPINDLE MOTOR POWERkW3.7/5.5( Mitsubishi) /5.5/7.5(Fanuc)X/Y/Z RAPID FEED SPEEDm/min48/48/48MAX CUTTING FEED SPEEDmm/min1-20000TOOLS MAGAZINE CAPACITYpcs21X/Y/Z POSITION ACCURACYmm±0.005X/Y/Z RE-POSITION ACCURACYmm±0.003MACHINE DIMENSIONmm1930x2450x2450MACHINE WEIGHTkg3000  Standard Configuration for TV SeriesFull Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gunOptional Configuration TV SeriesNC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler.  Company Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
