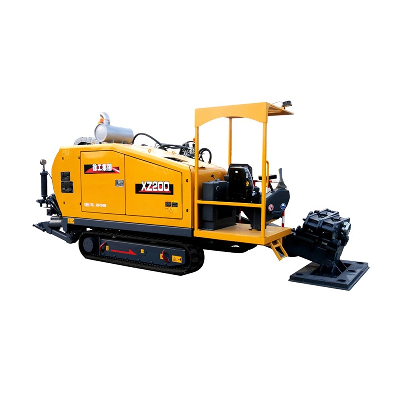

Small HDD Mini Horizontal Directional Drill Machine Xz200 Xz120e Xz180

  Technical Features of XZ120E & XZ200:Application Scope of XZ Series Horizontal Directional Drills:XZ Series Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ series horizontal directional drills have the advantages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. horizontal directional drilling rig are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry. Highlights of horizontal directional drilling rig XZ120E:1. 's smallest tonnage horizontal directional drill, the equipment is small and flexible, and the minimum width is 1.45 meters, which can meet the requirements of narrow space construction.2. The industry's first microcomputer equipped with a fully automatic loading and unloading device for drilling pipes, which can be operated by a single person.3. Customized development of control system, system matching, engineering adaptability, strong regional adaptability. Horizontal Directional DrillS Service:can conduct customized research and development on horizontal directional drills based on customers and actual construction needs.  Horizontal Directional Drill Market:The market share of horizontal directional drills has ranked first in China for seven consecutive years. The products are exported to more than 70 countries and regions including Europe, America, Africa, Central Asia, Southeast Asia and so on.Specification Brand New Horizontal Directional Drilling Machine Xz120eProjectunitXZ120EEngineModel-Cms 4BT3.9-C100Rated powerkW/r/min74/2200Push and pullMaximum pushing forcekN130Maximum push pull speedm/min37RotateTorqueN·m3000Maximum speedr/min220Mud pumpMaximum flowL/min100Maximum pressureMPa4Drill pipemm×mφ52×1.8Truck mounted craneLifting weightt--Lifting torquet•m--Maximum angle of penetration°18Maximum diameter of back expansionmmφ400Qualityt4.5Dimensionsmm4500×1680×2170Remarks-Overseas supplyModel XZ200Engine CUMMINSRated powerkW97Max.pullback/thrustingkN200/200Spindle torque(max)N.m6000Spindle speedr/min0-140Backreaming diametermmØ600Tubing length(single)m3Tubing diametermmØ60Entry angle°10-22Mud flow rate(max)L/min250Mud pressure (max)bar80Overall weightkg10000DIMENSION (LxWxH)mm6400×2270×2340/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
