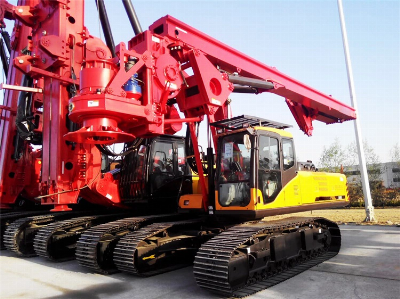

Engineering Civil Construction Equipment Sr155c 1500mm Rotary Drilling Rig

Engineering Civil Construction Equipment SR155C 1500mm Rotary Drilling RigFeature:SR155C rotary drilling rig is a classic model features with high efficiency, low fuel consumption, smart and flexible, suitable for hard soil drilling, cast-in-place pile foundation work in civil engineering.High drilling capacityPowered by Mitsu engine with rated power of 144 kW@2000 rpm, six gears control, SR155C10 power efficiency is significantly improved.Kelly bar is made of high strength steel tubes with light design. Maximum output torque reaches 155kN.m, maximum pile depth of friction Kelly is 56m, pile depth of interlocking Kelly is 44m.New design of main winch delivers faster line speed of 80m/min, bigger lifting power with 160kN line pull.Safe and reliableThe 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.-ADMS intelligent operation system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.Advanced welding robots, CNC automatic cutting machines ensure high precision and quality of the core components.Easy to transport&operateCompact in transport height and weight, the drilling rig is easy to transport in cities.The tailored chassis with larger spaces for pumps and valves is for easy maintenance during work.Spacious cab with panorama sunroof is designed to give the operator a comfortable environment and wide visibility.Parameter:ModelSR155PileMax.pile diameter1500mmMax.pile depth56/44mRotary DriveMax.output torque155kN.mSpeed of rotation5-35rpmCrowd SystemCrowd force155kNLine pull160kNStroke4200mmMain WinchLine pull160kNRope diameter26mmMax.line speed80m/minAuxiliary WinchLine pull60kNRope diameter14mmMax.line speed75m/minMast InclinationForward/Backward5/90°Lateral±3°Main ChassisEngine power147/2050 kw/rpmEngine displacement6373LChassis length5972mmExtended width4100mmTrack shoe width700mmSwing radius3717mmOverall MachineOverall height18592mmOperating weight48tTransport width3140mmTransport height3262mmPhoto show:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
