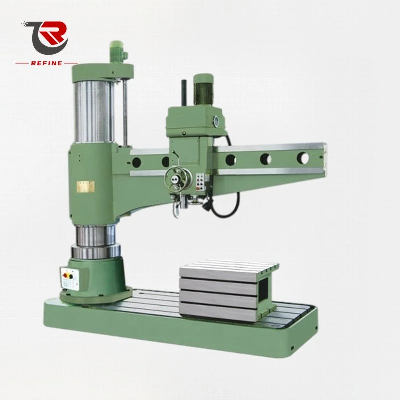

Small Mechnial Radial Drilling Machine Z3032

PRODUCTION DESCRIPTIONMain and key parts are made by high strength cast and special steel material.Heat treatment made by first-class equipment, ensuring durability.Machining is made by means of specializing equipment, to ensure basic parts with superior quality.Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable.Multiple spindle speeds and feeds provide economic and high-efficiency machining.Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation.New painting technology and improved outward appearance reflects the specialty of machines.1).Rocker arm guideraill, spindle quilk and inside and outside column of raceway all adopt surface quenching treatment, prolong the service life of the machine tool2).All control handle centered in convenient place, manipulation is convenient3).Spindle rotating and reversing , parking brake, variable speed, the gap of five movements, a handle to control, easy to use4).Spindle box, rocker arm, both inside and outside column adopts hydraulic drive rhombus bulk clamping mechanism, clamping and reliable5).Using hydraulic optional shift gear, auxiliary time can be saved6).Has a perfect safety protection devices, comply general international standards7).Spindle box, the pillar of the clamping or loosening could clamping alone, also can clamp at the same time8).Column, rocker arm, spindle box big adopt high strength cast iron, such as improving the big stiffness and strength9).The spindle box inside, rocker arm and post adopt automatic lubrication10).Radial guide rail, rocker arm lifting mechanism adopts manual lubrication11).The machine USES three-phase 380 v / 50 hz ac power.Control circuit, lighting circuit and indicator light controlled MACHINE PICTURESPARAMETERS ItemUnitZ3032x10Z3040Z3050×16Z3063Z3080Z30100Z30125Max. drilling diametermm3240506380100125column surfaceMax.mm1000160016002050250031504000Min.mm200350350450500560600Distance from spindle nose to base surfaceMax.mm1064121512701600200025002500Min.mm264315370400550700700Spindle travelmm250315315400450500560Taper of spindle bore (Morse)NoNo.4 MorseNo.4 MorseNo.5 MorseNo.5 MorseNo.6 MorseNo.6 MorseMetric 80Spindle speedr/min71-180025-200025-200020-160016-12508-10006.3-800Spindle speed series 8161616161622Spindle feed rate seriesmm/r0.13-0.540.04-3.20.04-3.20.04-3.20.04-3.20.06-3.26.3-800Main powerkw2.2345.57.51518.5MACHINE FEATURESACCESSORIESNoItemQuantity1Reduction sleeve12Drill chuck13Connecting rod14Worktable15Operation instruction1PACKING & SHIPPING WHY CHOOSE US/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
