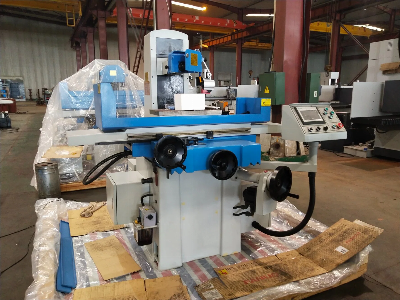

1.Machine FeaturesThe machine adopts the layout form of "+" , and the transverse guide rail is covered with teflon soft belt. The table movement adopts closed hydraulic system. The front and back feed can be manually fed or the screw rod can be driven by the motor for intermittent feed. The grinding head can be moved up and down by lifting motor for fast lifting (AHR), or servo motor for fast lifting and automatic feeding (AHD), or manually controlled. High precision sliding screw, high strength cast iron foundation, grinding head spindle adopts precision angular contact rolling bearing, high rigidity sleeve structure, the overall quality of the machine is stable, smooth operation.2.Details parametersSGA series parametersSpecificationsSG2050AHSG2050AHRSG2050AHDSGA2550AHSGA2550AHRSGA2550AHDSGA3063AHSGA3063AHRSGA3063AHDSGA4080AHSGA4080AHRSGA4080AHDSGA30100AHSGA30100AHRSGA30100AHDSGA40100AHSGA40100AHRSGA40100AHDtable size(W*L)mm200*460250*500305*635406*813305*1020406*1020Max.longitudinal travelmm51056076591011301130Max. transverse travelmm238275340450340450Max. distance from spindlecenter to table mm450580magnetic chuck sizemm200*460250*500300*600400*800300*1000400*1000Longitudinal feedm/min7~23worktable transverse movementAuto feedmm/min0.1-8rapid speedmm/min990handwheel feedmm/div.0.02wheelhead vertical movementAuto feedmm/stroke------------(AH/AHR) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)rapid speedmm/min----------(AH) 460(only for AHR/AHD model)handwheel feedmm/div.0.005wheel Speed Rpm28501450wheel sizemm200*20*31.75350*40*127Spindle motorKw1.52.25.5hydraulic motorKW0.752.2cooling motorKW0.040.125total rated powerKW33.79Max. table load (include chuck)Kg120180270500400600Gross weightKg160018002600330032003800 3.Standard accessories4.Optional accessories you can choose5.Company honors 6.Top view of surface grinder workshop7. Advantages1.Factory direct sales, product quality and after-sale can be effectively guaranteed2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them8.After-sale servicesI. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.II. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.III. Provide spare parts and spare parts at preferential prices for a long time.IV.the warranty is one year after machine out of our company.9.Exhibitions /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
