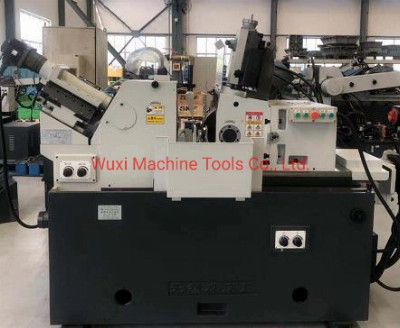

Mg1050c High Accuracy Centerless Grinding Machine for Max. Od. 50mm

Machine application:The machine is used for producing cylindrical parts, ring parts with high precision requirements in the way of centerless through feeding. And it also can be used for grinding cone parts with cone angle less than 3° and molding rotational parts in the way of centerless in-feeding. It's applicable for mass-production.Machine configuration & characteristics:1. Only reg. wheelhead feeding.2. Single side supporting GW. spindle with multi-piece dynamic pressure bearing.3. Double-side supporting RW. spindle with rolling bearings.4. The feeding guideway for reg. wheelhead, shaping guideway for GW. and RW. are all double-v shape pre-loaded rolling guideway. They're featured sensitively movement.5. Mitsubishi control system controls the fast approach, rough feeding, semi-feeding, micro-feeding and compensation of reg. wheelhead as well as the feeding and compensation of GW. dresser (servo motor).6. RW. dresser feeding is controlled by manual while reciprocating of GW. dresser and RW. dresser is controlled by gear motor.Technical parameters:Workpiece diameter:5~50mmWorkpiece length    Through feeding200mm   In-feeding145mmG.W. specificationP500×150×305mmR.W. specificationP300×150×177.8mmG.W. speed1300r/minR.W. speed (stepless) 10~290r/minR.W. swiveling angle     In vertical plane-2°~ +7°    In horizontal plane0°~ +3°Reg. wheelhead displacement in axial direction±5mmReg. wheelhead feeding resolution0.001mmGW. dresser feeding min.0.001mmRW. dresser feeding amount in division0.01mmRW. dresser swiveling angle in horizontal plane-2°~ +7°RW. dressing pen displacement adjustment±15mmThe distance between the center line of GW. and RW. to the bottom of workrest200mmTotal power 19.33kwMachine overall dimension3550mm×2700mm×2000mmNet weight approx.5000 kgMachining accuracy:(standard testpiece Φ20×90m, 45#steel)  Roundness0.001mmDia. consistency0.015mmRoughnessRa0.16um                                                                      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
