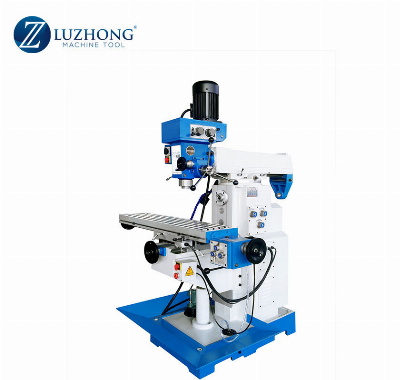

Worktable Universal Milling And Drilling Machine (ZX6350C)

Worktable Univereal Universal  Milling And Drilling Machine (ZX6350C)Product Description The main performance characteristics:1.Gear transmission for vertical/horizontal milling head2.X /Y/Z axis auto feed3.Headstock swivel +/-45°4.Guide way with sparking quenching  Product Parameters Product main technical parameters:  SpecificationsUnitsZX6350ATable sizemm1250X320T Slot number/width/pitchmm3/14/70Longitudinal travelmm600Cross travelmm300Vertical travelmm300Beam travelmm300Vertical spindle axis to column surfacemm200-500Vertical spindle nose to table surfacemm90-390Horizontal spindle axis to table surfacemm0-300Horizontal spindle axis to beam surfacemm175Vertical spindle speedsR/min115-1750 8 stepsHorizontal milling spindle speedsR/min40-1300 12 stepsVertical spindle taper MT4Horizontal spindle taper MT4Vertical spindle travelmm120Main motor powerkw0.85/1.5(V),2.2(H)Vertical milling bead swivel angle°±45Table X/Y axis auto feed speedMm/min22-555(8 steps)(rapid:840)Table Z axis auto feed speedMm/min560X/Y axis feed motorw750Z axis feed motorw750Overall dimensionsmm1680x1550x2100Net weightKg1450Detailed Photos Company Profile FAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
