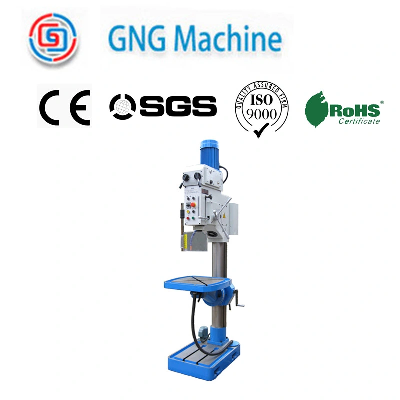

Electric High Precision Vertical Drilling Machine

Min. Order Quantity: 10 Set/Sets Supply Ability: 300 Set/Sets per Month Port: Qingdao/Shanghai Payment Terms: T/T Quick Details Condition: New CNC or Not: Normal Drilling Speed: 50-1450rpm Place of Origin: Shandong, China (Mainland) Brand Name: GNG Model Number: Z5040 M27(1.06"): 380V Power(W): 750W Dimension(L*W*H): 2270X690X1100mm Weight: 465kgs Certification: CE After-sales Service Provided: No overseas service provided Packaging & Delivery Packaging Details: 2270X690X1100mm 465/615kg Delivery Detail: 30-45days Specifications Z5040 bench drilling machine 2 speed strong power motor Automatic tools ejectors 2 steps power feed 0.1-0.2mm/rev Z5040 bench drilling machine Specifications: Z5040(machinery power feed)/Z5040E(electronic power feed) 1. Max. Drilling capacity: 40mm 2. Threading in steel& cast iron: M20&M24 3. Spindle travel: 180mm 4. Spindle taper: MT#4 5. Spindle power feed: 2steps/0.1-0.2mm/rev 6. Spindle speed: 50-1450rpm 7. Width of T-slot: 18mm 8. Max. Distance from spindle axis to surface of column: 350mm 9. Max. Distance from spindle end to surface of table: 770mm 10. Max. Distance from spindle end to surface of bace: 1210mm 11. Table size: 560X560mm 12. Base size: 730X500mm 13. Motor power: 0.75/1.5KW 14. NW/GW: 465/615kg 15. Packing size: 2270X690X1100mm Feature: 2 speed strong power motor Automatic tools ejectors 2 steps power feed 0.1-0.2mm/rev Drilling, tapping Max. drilling capacity40mm(1.57")Max. tapping capacityM27(1.06")Max.travel of spindle240mm(9.45")Distance form spindle axis to generating line of column360mm(14.17")Max. distance from spindle nose to working surface of work table600mm(23.62")Max. distance from spindle nose to working surface of base plate1200mm(47.24")Max. adjustment of work table and table test560mm(22.05")Swivel of table±45°Spindle bore taper (Morse)No.4Spindle speed steps12Spindle speed42-2050r.p.mFeed steps4Feed range0.10,0.20,0.30,0.40 mm/rEffective working area of table510×380mm2(20"×15")Effective working area of base plate450×440mm2(17.72"×17.32")YD112M-4/23-phase two-speed A.C. motorPower2.2/2.8KW(3/3.8hp)Voltage220,380,420,440,575VSpeed960/1440 r.p.mAYB-6B3-phase pump motorPower0.085KW(0.12hp)Voltage220,380,420,440,575VFlow rate6 L/minColumn diameter160mm(6.3")Overall dimensions(L×W×H)1100×580×2380mm3(43.31"×22.83"×91.73")Machine weight (Net weight/Gross weight)690/750kgPackage dimensions(L×W×H)110×67×212mm 16 SETS/20 Container  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
