KGS818AH-200X460mm Hot Sale Horizontal Spindle Surface Grinding Machine

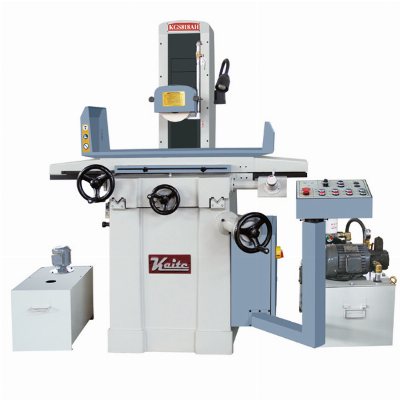

1. Picture AH: 2-axis automatic feedhydraulic automatic longitudinal feedelectronic automatic cross feedmanual down feed2. ParametersParametersUnitKGS818AHWorking Surface of Tablemm200×460  (8"x18")      Max.Table Travelmm510Max.Cross Travelmm225Distance Between Table Surface and Spindle Centermm520Max.Table Loadkgs150T-Solt (Number×Width)mm1×14Table Speedm/min0~25Cross feed Handwheel1gardmm0.021 rev5Automatic Cross feed of Saddlemm0.5~12Power Cross Feed50HZmm/min78060HZ950Grinding Wheel Dimensionsmm200×25×32/31.75Spindle Speed50HZrpm285060HZ3420Vertical Handwheel1gardmm0.011 rev2Automatic Down Feed Ratemm-Power Head Incrementmm/min-Spindle Motorkw1.5Vertical Motorw-Hydraulic Motorkw1.5Dust Collection Motorw550Coolant Motorw90Crossfeed Motorw60Floor Spacemm2500×1900Packing Dimensionsmm1920×1458×2125Net Weightkgs1280Gross Weightkgs14803. Main Configuration of Grinding Machine1. Spindle motor: ABB brand.2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.3. Main electrical components: SIEMENS brand.4. Main hydraulic components: brand from TAIWAN.  4. Standard Accessories       1Grinding wheel2Wheel flange3Wheel balancing base4Wheel balancing arbor5Extractor6Diamond dresser7Leveling pad8Anchor bolt9Tool box with tools10Electric magnetic chuck   11Cooling system12Working light                  5. Optional AccessoriesSerial No.Name of Article1rear splash guard         2DRO (digital read out)3overhead parallel dresser  4hydraulic tank oil cooling5cooling & suction device    6magnetic separator        7cooling magnetic paper filter Note6 and 7, select one just OK.6. Feature1. Well designed cast iron structure provides excellent dampening2. Flange mount spindle cartridge for superior side grinding rigidity 3. Grinding spindle features low-maintenance preloaded high precision angular ballbearings(NSK P4 grade)4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine8. Electric components and functional modules are well arranged and packed in the electric  cabinet, making maintenance and trouble-shooting easily accessible9. Safety 24V control circuit power7. Company & FactoryNantong Kaite Machine Tool Co., Ltd. A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC. KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.KAITE supply the USA quality machines and with China price.  KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!8.  Delivery Picture  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
