400X1000mm Magnetic Table Surface Grinder Kgs1640ahd

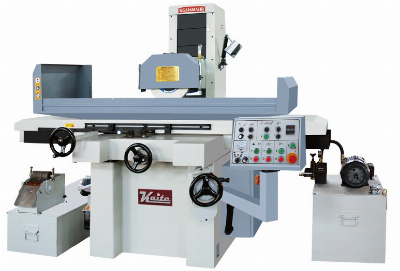

1. Picture AHR: 2-axis automatic feed hydraulic automatic longitudinal feedelectronic automatic cross feedelectronic rapid up and down feed AHD:  3-axis automatic feed  hydraulic automatic longitudinal feedelectronic automatic cross feedincremental auto down feed (use hydraulic system and gear box) 2. ParametersParametersUnitKGS1640AHRKGS1640AHDWorking Surface of Tablemm400×1000 (16"×40")400×1000   (16"×40")Max.Table Travelmm10501050Max.Cross Travelmm440440Distance Between Table Surface and Spindle Centermm580580Max.Table Loadkgs700700T-Solt(Number×Width)mm3×143×14Table Speedm/min5~255~25Crossfeed Handwheel1gardmm0.020.021 rev55Automatic Crossfeed of Saddlemm0.5~120.5~12Power Cross Feed50HZmm/min79079060HZ950950Grinding Wheel Dimensionsmm355×40×127355×40×127Spindle Speed50HZrpm1450145060HZ17401740Vertical Handwheel1gardmm0.0050.0011 rev20.5Automatic Down Feed Ratemm-0.005~0.025Power Head Incrementmm/min380230Spindle Motorkw5.55.5Vertical Motorw9090Hydraulic Motorkw2.22.2Dust Collection Motorw550550Coolant Motorw9090Crossfeed Motorw9090Floor Spacemm3600×26003600×2600Packing Dimensionsmm2990×2255×21952920×2155×2195Net Weightkgs29102950Gross Weightkgs321032503. Main Configuration of Grinding Machine1. Spindle motor: ABB brand.2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.3. Cross screw: P5 grade precision ball screw.4. Main electrical components: SIEMENS brand.5. Main hydraulic components: brand from TAIWAN.4. Standard Accessories       1Grinding wheel2Wheel flange3Wheel balancing base4Wheel balancing arbor5Extractor6Diamond dresser7Leveling pad8Anchor bolt9Tool box with tools10Electric magnetic chuck   11Cooling system12Working light                   5. Optional AccessoriesSerial No.Name of Article1rear splash guard         2DRO (digital read out)3overhead parallel dresser  4hydraulic tank oil cooling5cooling & suction device    6magnetic separator        7cooling magnetic paper filterNote6 and 7, select one just OK.6. Feature1. Well designed cast iron structure provides excellent dampening2. Flange mount spindle cartridge for superior side grinding rigidity 3. Grinding spindle features low-maintenance preloaded high precision angular ballbearings(NSK P4 grade)4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine8. Electric components and functional modules are well arranged and packed in the electric  cabinet, making maintenance and trouble-shooting easily accessible9. Safety 24V control circuit power7. Company & FactoryNantong Kaite Machine Tool Co., Ltd. A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC. KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.KAITE supply the USA quality machines and with China price.  KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!8. Delivery Picture  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
