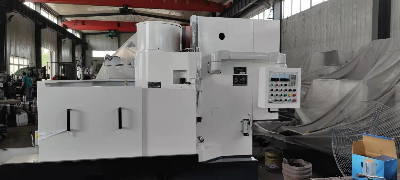

M74000 Series Vertical Spindle Surface Grinder with Rotary Table

M74000  Series Vertical Spindle Surface Grinder With Rotary Table   The M74000 series machine tools are vertical spindle surface grinder with rotary table.The round electromagnetic workable was applied.The end face of grinding wheel are applied to grinding parts surface.    The grinding head spindle is equipped with high precision bearings, with  excellent rigidity and high grinding efficiency.   The suction power of electromagnetic chuck could be adjusted smoothly,and automatic demagnetization.   The three point adjusting structure is applied to vertical column.   The vertical feed mechanism of machine tool adopts servo motor to feed directly, the feed quantity and the total feed quantity are controllable, and the feed completion and automatic alarm function are available.   The appearance of this machine is simple and bright, and it can realize fast and powerful grinding by grinding instead of milling.    The machine can be used for bearing, gear, die frame, saw blade, template, magnetic materials, ceramics, refractory materials, hard alloy, glass and quartz and other industries.  MODEL diameter ofWorkingtable(mm)Max. size of work piece(mm)Total powerof machine(kw)Weight of working table bearing(kg)M7450EØ 500Ø 500×25027.75200M7465EØ 650Ø 650×30027.75300M7475EØ 750Ø 750×39037.25460M7480EØ 800Ø 800×39037.25500M74100EØ 1000Ø 1000×39052.251500M74125LØ 1250Ø 1250×40060.451500M74140EØ 1400Ø 1400×40060.451500M74160Ø 1600Ø 1600×40084.72 M74180Ø 1800Ø 1800×40084.72 M74200EØ 2000Ø 2000×40091(106) M74225EØ 2250Ø 2250×40094.5(109.5) M74250EØ 2500Ø 2500×400130.24      The detail specifications of each machine toool, please see each single product item.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
