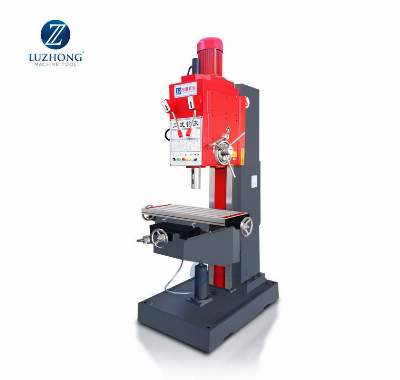

High Quality Square Metal Column Vertical Drilling Machine (Z5150B)

High Quality Square Metal Column Vertical Drilling Machine (Z5150B)Product DescriptionProduct ParametersProduct main technical specifications:SpecificationsZ5150BZ5150B-1Max drilling diameter(mm)5050Spindle taperMT5MT5Spindle travel250250Spindle box travel(manual)(mm)200200Spindle speed (steps)1212Spindle speed range(r.p.m)31.5~140031.5~1400Feed series99Feed range(mm/r)0.056~1.800.056~1.80Table size(mm)560x480800x320Table longitudinal(cross) travel(mm)-450/300Table vertical travel(mm)300300Max distance form spindle nose to table surface(mm)750750Main motor power(kw)33Overall size(mm)1090 x 905 x24651300*1200*2530N/W(kg)13001350Detailed Photos Company Profile FAQ 1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
