Blade Knife Grinding Sharpening Machine, Knife Grinder, Blade Sharpener Machine

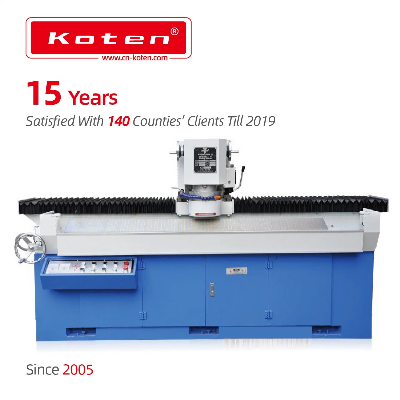

Samples After Grinding.Introduction.Model MSQ-C knife grinding machine is a grinding machine developed by our factory to meet the requirement of high-tech development. This knife grinding machine integrates both devices of knife sharpening and sharpening double grinding-head. With the adoption of hydraulic automatic blade-feeding, traveling steepless speed regulation and rolling beeline guide track, it enables to change the angle of knife edge, thoroughly eliminate the waviness on paper-cutting cross section and prolong the using life of knife edge and blade. It is the updated grinding equipment at home and it can offer service to help printing factories to develop towards high-precision cutting level. Main Specifications.  No.DescriptionSpecification & TypeMSQ-1650CMSQ-2200C1Max. grinding length1650mm2200mm2Grinding Wheel Speed1400rpm3Size of polishing disc140mmX64Width of grinding blade180mm5Rotation angle of worktable0~± 90°6Moving speed of grinding-head4.5-6.5M/minute7Max. sunction of magnetic disc10T8Power of grinding motor3KW9Power of pump125W10Grinding wheel attached Specification  A. Type and CodeWhite corundum(GB) B. HardnessSoft 3, J(R3) C. Granularity46#/60# D. Size of grinding wheel200X100X10011Weight1.7T2.2T12Outside dimensions (Length x Width x Height )2200x850x1450mm2700x850x1500mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
