Glass Straight Line Edging Machine, Glass Polishing Machine, Building Glass Grinding Machine

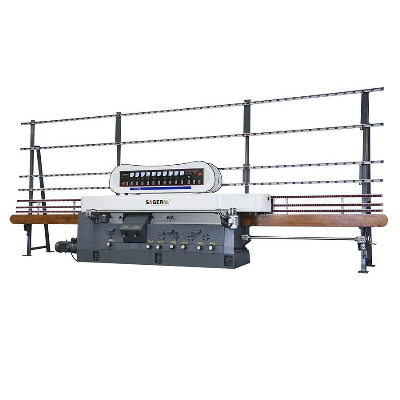

Glass straight line edging machine, glass polishing machine, building glass grinding machine  Product DescriptionSZ-ZB9 is designed for processing straight-line edge and 45 degree arrissing of glass sheet with various size and thickness. The machine equipped with spindles, The base of machine is made of cast iron; Production speeds is adjusted by step-less motor; Input and output conveyor adopt timing belt which can improve the transmission precision. It is easy to operate and has good performance.* Siemens PLC with touch screen for control system.* Stainless steel water tank; stainless steel polishing tank with electrical agitator.* Lubricating pump supplies lubricating oil to all the parts which need to be lubricated.* Electronics comply with CE regulationThe Machine is available with various size and thickness; The glass thickness is adjusted by a motor with digital display. A special design on the in-feed section, for which is able to control the desired value of feeding integrally, so that unnecessary to adjust each spindle individually. The independent felt wheel and the cerium water recirculation system make the flat edge more shining; Input and output conveyor adopt timing belt which can improve the transmission precision. The machine is equipped with the best quality and reliable parts as its components, which are the world well-knows brands, such as Siemens.All metal sheets used on the equipment are processed by laser cutting, the main body of the machine is made of high-quality iron cast and processed by CNC gantry milling, and the mechanical parts are processed by CNC machining center.Product Parameters   Min.glass size80*80mmGlass thickness3-28mmProcessing speed0.5-4.5mmInstalled Power21KWNo. of spindle9 pcsDimension8500*1400*2500mmWeight3500kg  Packaging & Shipping Related Glass Machine  Glass Exhibition Company ProfileEstablished in 2008, a professional manufacturer and exporter that is concerned with design, development and production of glass processing machinery.Main Products including: PVB glass laminating machine, EVA glass lamination furnace, PVB/EVA glass lamination line, glass edge polishing machine, glass washing machine , glass drilling machine etc.Professional R&D team from both domestic and overseas, experienced managing and after-sale service team. We also have branch in Brazil, agent in UK , Turkey, USA, Italy; The global sales network about 60 countries reaching USA, Germany, France, Italy, UK, Australia, Brazil, Republic of Venezuela, Argentina, Czech, Columbia, South Korea, Thailand, United Arab Emirates, Turkey, Kenya, South Africa etc./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
