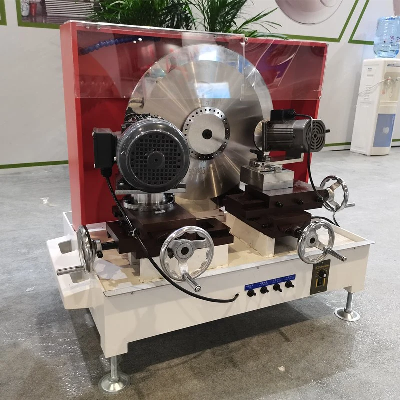

Sample Customization Industrial Paper Cutting Blade Sharpening Grinding Machine

Industrial Paper Cutting Blade Sharpening Machine Round knife sharpener Detailed description: *The scope of use of this machine 1. Inner diameter of round knife: standard adjustable range Φ25.4mm, customized size is available. 2. Grinding diameter Φ50mm---Φ500mm 3. Grinding angle 0°-45° 4. Use voltage 220V 50HZ Round knife sharpener Host equipment 1. Spindle motor 1/4HP AC stepless variable speed motor 2. Large knife edge grinding 3/4HP AC 2880RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ125*Φ19*48t*3 3. Small knife edge grinding 1/8HP AC 2950RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ100*Φ12*29t*3 4. Cooling system 1/8HP AC 2850RPM spray coolingGrinding machine configuration listApplicationSuitable for varity of round knife grinding  Inner diameterAvailable range 25.4mm  Grinding diameter50mm to 500mm  Grinding angle0 - 30°  Power220V 50HZ  1PHASEConfiguration  Main axle motorMain axle 40w speed adjustable motor Taiwan Shenli; Knife slope grindingKnife slope 550W  Nanjing gaoqi(Taiwan company)(Angle adjustable+/- 15°) Grinding wheel 125 x 48x16*3mm  knife edge grindingKnife edge 140W  Taiwan shenli (Angle adjustable+/- 15°) Grinding wheel CBN 100 x 29x12*3mm Cooling pump60W Round knife fixture100/160(standard size can grind OD350, over this size is optional parts)High-quality raw materialsMaterials are the foundation of products, and the company cooperates with many domestic and foreign suppliers of honest materials. In order to ensure the quality, the raw materials are subjected to multi-layer sorting, the materials are stable and the quality is consistent.   Vacuum heat treatmentHeat treatment is the "soul" of the product and the key to the product. The company took the lead in introducing the "vacuum heat treatment" technology. The blade is not deformed, and the hardness, toughness and wear resistance of the product reach the best  Imported high precision CNC equipmentProfessional grinding masters and independent research and development team to meet various customer needs. The product undergoes multiple processes, professional grinding and polishing, and excellent workmanship. The precision of imported equipment can reach ±0.01-0.02mm. It has made outstanding contributions to the medical, lithium battery, film adhesive and other industries.  Testing equipmentThe company uses optics, radiographic flaw detection and other technologies for product inspection, and each product can be put into the warehouse after passing the inspection.  package and transportationwe will pack the blades according to different kinds of blades to blades to avoid any damage.during transportation,please handle gently.  Our CompanySuzhou Shanggong Blade Co., Ltd is located in No. 66, Kaigui Road, Yushan Town, Kunshan. Our company covers around6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testingequipment which are used in processes from raw material to finished products.We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.Our Products have been exported to more than 40 countries in the world. Products are used in many industries such aselectronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.  why choose us /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
