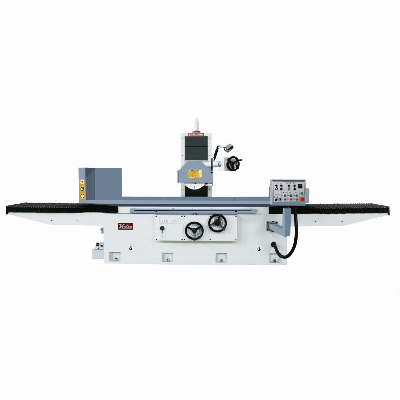

Kgs615ahr/Ahd-600X1500mm Magnetic Chuck Large Surface Grinding Machine

1. Picture AHR: 2-axis automatic feed hydraulic automatic longitudinal feedelectronic automatic cross feedelectronic rapid up and down feed AHD:  3-axis automatic feed  hydraulic automatic longitudinal feedelectronic automatic cross feedincremental auto down feed (use hydraulic system and gear box) 2. ParametersParametersUnitKGS615AHR KGS615AHDWorking Surface of Tablemm600×1500 (24"×60")600×1500 (24"×60")Max.Table Travelmm16001600Max.Cross Travelmm650650Distance Between Table Surface and Spindle Centermm600600Max.Table Loadkgs800800T-Solt(Number×Width)mm3×163×16Table Speedm/min5~255~25Crossfeed Handwheel1gardmm0.020.021 rev55Automatic Crossfeed of Saddlemm0.5~120.5~12Power Cross Feed50HZmm/min1250125060HZ15001500Grinding Wheel Dimensionsmm355×50×127355×50×127Spindle Speed50HZrpm1450145060HZ17401740Vertical Handwheel1gardmm0.0020.0021 rev0.50.5Automatic Down Feed Ratemm-0.005~0.04Power Head Incrementmm/min230230Spindle Motorkw7.57.5Vertical Motorw370370Hydraulic Motorkw5.55.5Dust Collection Motorw550550Coolant Motorw9090Crossfeed Motorw370370Floor Spacemm5810×24455810×2445Packing Dimensionsmm5800×2260×22505800×2260×2250Net Weightkgs72507250Gross Weightkgs825082503. Main Configuration of Grinding Machine1. Spindle motor: ABB brand.2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.3. Cross screw: P5 grade precision ball screw.4. Main electrical components: SIEMENS brand.5. Main hydraulic components: brand from TAIWAN.4. Standard Accessories       1Grinding wheel2Wheel flange3Wheel balancing base4Wheel balancing arbor5Extractor6Diamond dresser7Leveling pad8Anchor bolt9Tool box with tools10Electric magnetic chuck   11Cooling system12Working light                 5. Optional Accessories  Serial No.Name of Article1rear splash guard         2DRO (digital read out)3overhead parallel dresser  4hydraulic tank oil cooling5cooling & suction device    6magnetic separator        7cooling magnetic paper filter Note6 and 7, select one just OK.6. Feature1. Well designed cast iron structure provides excellent dampening2. Flange mount spindle cartridge for superior side grinding rigidity 3. Grinding spindle features low-maintenance preloaded high precision angular ballbearings(NSK P4 grade)4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine8. Electric components and functional modules are well arranged and packed in the electric  cabinet, making maintenance and trouble-shooting easily accessible9. Magnetic force can be adjusted10. Safety 24V control circuit power7. Company & FactoryNantong Kaite Machine Tool Co., Ltd. A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC. KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.KAITE supply the USA quality machines and with China price.  KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!8. Delivery Picture  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
