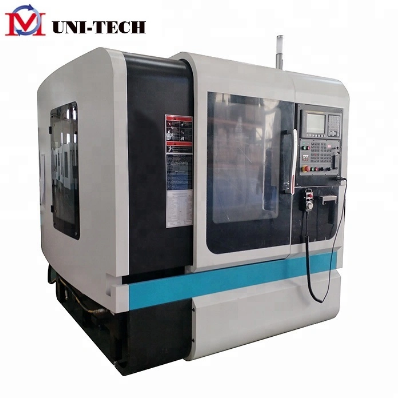

VMC640 China Vertical Machining Center with FANUC and 16 toolsNameManufacturerLead screw TAIWAN Spindle TAIWAN Electric component S-CHNEIDER Coolant Walrus -taiwan Lubrication pump HERG -JAPAN Tool changer 16PCS HOLDER TAIWAN Controller FANUC Oi-MF(5) KND-2000M,GSK25iLead screw bearingNSK Air condition Shanghai Linear guide way X Y AXIS VMC640 China Vertical Machining Center with FANUC and 16 toolsVMC640 China Vertical Machining Center with FANUC and 16 tools Machining area X axis travelmm650Y axis travelmm400Z axis travelmm500Distance from spindle nose to table surfacemm120-620Working table Table size ( X axis)mm920Table size ( Y axis)mm400T slot ( Width×Distance×Number) 14/120/3 Max.table loadkg300 Spindle Spindle speedrpm40-6000 Main motor powerKw5.5 Spindle tapper BT40 Max. Spindle output torqueNm26.3/48FEED SYSTEM Rapid feed speed on Xmm/min30000Rapid feed speed on Ymm/min30000Rapid feed speed on Zmm/min18000Cutting feed speed Screw size of X axis (diameter×helical pitch)mm32×12Screw size of Y axis (diameter×helical pitch)mm32×12Screw size of Z axis (diameter×helical pitch)mm32×12servo motor powerkW1.2/1.2/1.4Accuracy Positioning accuracymm±0.005/300 JISRepeat Positioning accuracymm±0.003 JISDimensionmm2180x2052x2600weightkg3200CERTIFICATE====VMC640 China Vertical Machining Center with FANUC and 16 toolsExhibation===VMC640 China Vertical Machining Center with FANUC and 16 toolsOur Services:1. Your inquiry and email will be replied within 24hours. 2. If you need to develop products with your own specification, we can help you to work it out.3. Always be honest, never lie to customer, and never declare anything we don't have.4. Customer First:,we offer best Quality and Service!FAQ:1. Payment Method:30% deposit T/T in advance, rest against the copy of B/L or before delivery.2. Delivery Time:one week3. MOQ:1 set machine.If you need machine with your own specification, logo, packing, etc, please negotiate with us.4. Shipping: For machine: Usually by sea;For documents: by international express, eg. DHL,TNT or EMS /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
