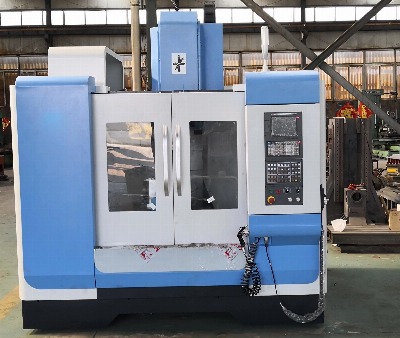

GSK218 Controller Vmc Vertical CNC Machine Centre (VMC500)

Main features:X/Y/Z-axis adopts Taiwan HIWIN linear guide ways( width 45mm ) X/Y/Z-axis servo motor connects Taiwan HIWIN high precision ball screws Taiwan brand drum-type tool magazineBed body, worktable, slide, column, headstock, etc are made up by high rigidity cast iron material,Taiwan Posa brand spindle unit with 8000rpm,the max.spindle speed can be achieved to 6000rpm.with high precision,high rigidty.NSK bearingTaiwan brand CHENSOUND umbrella type tool magazineEquipped with large flow cooling pump and large capacity water tankElectromagnetic valve group by PLC program control, ensure that the spindle loose tools, spindle center blowing, spindle folder tools, air cooling spindle etcThe guideway and ballscrew pair adopt centralized automatic lubrication, Each node is equipped with a quantitative oil separator.Specifications:SpecificationsUnitsXH7132XK7132Table travel (X,Y,Z)mm620×350×500620×350×500Table sizemm920×320920×320Number/Width/Distance of T-slotmm3-14-853-14-85Distance from spindle nose to table surfacemm100-600100-600Distance sfrom spindle axis to column guidewaymm395395Taper of spindleBT40BT40Spindle speed rangerpm60-600060-6000Spindle motor powerKWServo 3.7Servo 3.7Rapid feed speedmm/min1800018000Feed speedmm/min2.5-30002.5-3000Tool magazin capacityqty16 max dimension of toolmm120x120 max weight of toolkg8 Positioning accuracymm±0.0.15±0.02Repeat positioning accuracymm±0.00750.01Overall dimensionmm2020X1870X21702100×1970×2170Machine weightkg32502650Standard equipments:GSK25I CNC systemRS232 interfaceTaiwan 16 umbrella tool station, Taiwan BT40 8000rpm spindle unit, 3-Axis tursite box guideway, Taiwan Hiwin leadscrew,Japan NSK bearing,Full-cover protection, Worklight, Coolant system, Auto-lubrication, Electrical handwheelOptional accessories:Magnetic lock Disc type 16 tools station CNC the forth axis FANUC 0i mate-MDSIEMENS 828DHNC-22MKND-2000M/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
