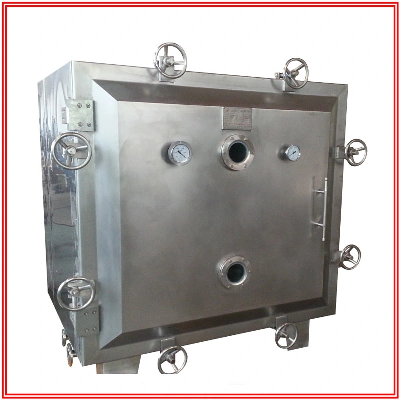

Vacuum Tray Dryer with Low Temperature

Application:It's suitable for drying heat sensitive material, it's widely used in pharmaceutical, chemical, food and electronic industries. Features: 1.Under the condition of vacuum,the boiling point of raw material will decrease and make the evaporation efficiency increase. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved. 2. The heat source for evaporation may be low pressure steam or surplus heat steam. 3. The heat loss is less. 4.Before drying,the treatment of disinfection may be carried out during the period of drying,there is no impurity material mixed. It is in conformity. 5. It belongs to static dryer. So the shape of raw material to be dried should not be destroyed. Questions before quotation: 1.       Material name 2.       Material initial moisture and final moisture 3.       How many kg per batch or per day 4.       Heating source is steam or hot water? Techinical specification: Model NameYZG-600YZG-800YZG-1000YZG-1400AFZG-10FZG-15FZG-20Inter size of drying chamber(mm)Φ600×976Φ800×1247Φ1000×1527Φ1400×20541500×1060 ×12201500×1400 ×12201500×1800 ×1220Outer size of drying chamber(mm)1135×810 ×10241700×1045 ×13351693×1190 ×1502386×1675 ×19201513×1924 ×17201513×1924 ×20601513×1924 ×2500Layers of baking support44685812Interval of baking(mm)8282102102122122122Size of baking tray(mm)310×600 ×45520×410 ×45520×410 ×45460×640 ×45460×640 ×45460×640 ×45460×640 ×45Quantity of baking tray481232203248working pressure inside the pipe of baking support(Mpa)≤0.784≤0.784≤0.784≤0.784≤0.784≤0.784≤0.784Operation temperature of baking support, oC35-15035-15035-15035-15035-15035-15035-150Degree of vacuum inside the chamber when operation (Mpa)-0.09~0.096Under the condition of -0.1Mpa and 110oC,evaporation rate of water(kg/m2.hr )7.27.27.27.27.27.27.2When condenser is used,Model,and power of vacuum pump(kw)2X-15A 2KW2X-30A 3KW2X-30A 3KW2X-70A 5.5KW2X-70A 5.5KW2X-70A 5.5KW2X-90A 2KWWhen condenser is not used,Model,and power of vacuum pump(kw)SK-0.8 2.2KWSK-2.7 4KWSK-3 5.5KWSK-6 11KWSK-3 5.5KWSK-6 11KWSK-6 11KWWeight of drying chamber(kg )2506008001400140021003200  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
