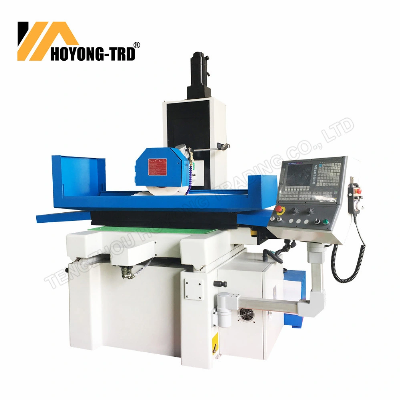

CNC Surface Grinding Machine Universal Grinding Machine Mk820 Mk1022 Mk1224 Mk4080

SURFACE GRINDING MACHINE FEATURES:1.Having reasonable structure,high rigidity,good looking and operating easily.2.Transverse movement(front and rear) of work table is driven by servo motor and transmitted by Precision ball screw which canensure precision,accurate positioning,automatic feed and fast forward and rewind functions.3. Longitudinal movement (left and right) adopts a flat -type rail guide and controlled by servo motor4.Vertical movement is transmitted by precision shaped screw and driven by servo motor which can ensure precision,accuratepositioning,automatic feed and rapid up and down function.5.Adopting SIEMENS CNC SYSTEM which has high degree of automation. ModelMK820Working tableTable Size(L × W)mm480×200Max movement of worktable(L × W)mm520×220T-Slot(Number×Width)mm1×14Grinding headDistance from table surface to spindle centermm450Wheel size(Outer diameter×width×Inner diameter)mmΦ200×20×Φ31.75Wheel speedr/min--Feed amountLongitudinal speed (left and right)of working tablem/min3-20Cross speed (front and rear of working tablem/min0-15Vertical automatic feed amount of grinding headmm0.005-0.05Rapid up and down speed of grinding head(Approximation)m/min0-5Motor powerSpindle motorkw1.5Coolant pump motorW-Up and down servo motor KW1Cross servo motorKW1Longitudinal servo motorKW1Working precisionThe parallelism of working surface to base levelmm300:0.005Surface roughnessμmRa0.32WeightNet kg1000Grosskg1100Chuck sizemm400×200Overall dimension(L×W×H)mm1680x1140x1760Package dimension(L×W×H)mm1630x1170x1940   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
