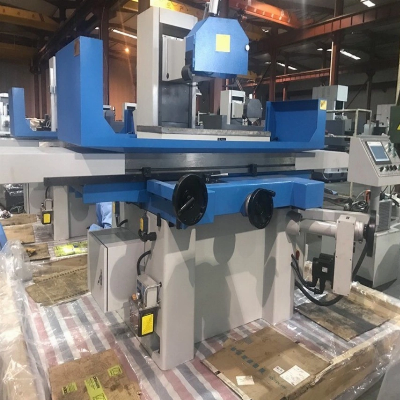

CNC Gantry Type Surface Grinding Machine

SGA3063AH Saddle Moving Surface GrinderProduct DescriptionStructural Features  --Cross board layout--High precision sliding screw--High strength cast iron foundation  The machine adopts the cross plate layout, and the transverse guide rail is attached with teflon foft belt. Closed hydraulic system is adopted for the movement of the worktable. The forward and backward feed can be manually fed or the screw can be driven by the motor to automatically feed intermittently. The downward movement of the grinding head can be achieved by using the lifting motor for quick lifting(AHR) or the servo motor for quick lifting and automatic feeding(AHD), which can also be accomplished manually. The machine adopts precise angular contact rolling bearing, high rigid sleeve structure, the overall quality of the machine is stable, smooth operation.Product Parameters  DescriptionUnitSGA-3063AHSGA-4080AHSGA-3063AHRSGA-4080AHRSGA-3063AHDSGA-4080AHD Table size (w*L) mm 305x635 406x813 Max.longitudinal travel mm 765 910 Cross travel mm 340 450 Max.distance from spindle center to table mm 580 580 Magnetic chuck size mm 300x600 400x800 Speed of table longitudinal movement m/min 7-23 7-23 Table transverse movement Auto feed mm/min 0.1-8 0.1-8 Rapid speed mm/min 990 990 Feed of handwheel mm/div. 0.02 0.02 Wheelhead vertical movement Auto feed mm/stroke 0.005/.001/0.02/0.03/0.04/0.05(only for  AHD model) Rapid speed mm/min 460 (only for AHR/AHD model) Feed of handwheel mm/div. 0.005 Grinding wheel Speed rpm 1450(50hz); 1750(60hz) 1450(50hz); 1750(60hz) Size (OD*W*ID) mm 350x40x127 350x40x127 Spindle Motor kw 5.5 5.5 Hydralic motor kw 2.2 2.2 Cooling pump motor kw 0.125 0.125 Elevating motor kw -------(AH mode)   0.25(AHR mode) 0.5  (AHD mode, servo motor) Cross feed motor kw 0.04 0.04 Max.loading capacity of table (include magnetic chuck) kg 270 500 Total rated power kw 9 9 Height of machine mm 1890 1890 Floor space (L*W) mm 2900x2200 3600x2400 Gross weight kg 2600 3500 Package dimension (LxWxH) mm 2350x2220x2150 2850x2270x2180    Hot ProductsCompany ProfilePackaging & ShippingFAQ1:How can I choose the most suitable machines?Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .  2: What's your main products of your company?We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .3: How long is the delivery time?For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.4.Where is our factory located? How can I visit there?Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.5. What is your trade terms?FOB, CFR and CIF all acceptable.6: What's the Payment Terms?T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .7: What's the MOQ?1 set .(Only some low cost machines will be more than 1 set )./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
