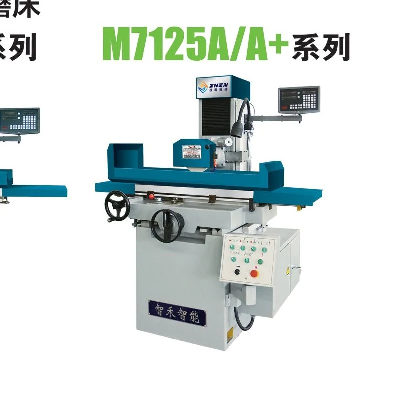

Surface Grinding Machine M7125A 250X500 My1224

Surface grinder M7125A /M7125A+ semi auto/full autowith CE certificate and ISO9001 DATASHEETPLS BE FREE TO CONTACT ME FOR MORE INFORMATION  Description M7125A M7125A+ G rinding  Capacity:   LX W XH mm 500X250X330 500X250X330 Longitudinal  table  travel mm 520 520 Cross  table  travel mm 275 275 Max.   Distance  from  the  spindle  centre  to  the  worktable  surface mm 410 410 S afety  load  of  bench  (  in  max  ) kg 100 100 T able  size mm 500 X 250 500 X 250 T-slot mmXn 12 X 1 12 X 1 B ench  speed m/min 3-23 3-23 Cross  auto  feed mm - - Cross  rapid  feed mm 144 144 C ross  handwheel  Per  graduation mm 0.0 2 0.0 2 per  revolution mm 3 3 Grinding  W heel  size( DXWXd) mm 200X16X31.75/32 200X16X31.75/32 S pindle  Speed R/min 2850 2850 Max...  Movement  of  the  vertical  mechanism mm 410 410 V ertical  fine  adjustment  revolution mm 0.15 0.15 V ertical  per  fine  adjustment  graduation mm 0.002 0.002 S pindle  moter kw 1.1 1.1 O verall  dimensions: (LXWXH) mm 1550x1180x1840 1550x1180x1840 Packing  size(LXWXH) mm 1650x1300x1950 1650x1300x1950 G/N  weight  T 1.6   / 1.4 1.6   / 1.4 Detail Photos  WORKSHOP PLANT 1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .3: Where is our factory located? How can I visit there?A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform me ahead, i will arrange and company you your visit period.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know:1.What's your Industrial Voltage? 2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!     3.If need CIF Price, please kindly tell us the port of destination./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
