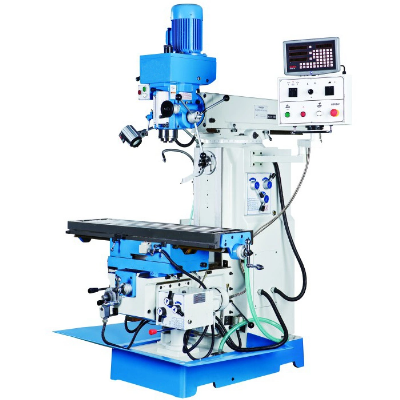

Universal Horizontal / Vertical Milling Machine (XZ6350ZR)

Universal horizontal / vertical milling machine(XZ6350ZR)Main Features:1. all 3 axes with automatic feed and rapid feeds2. vertical head swivels ± 45°3. spindle speeds for horizontal and vertical spindle controlled by separate switch gears with oil-bath lubrication4. capstan-controlled quill feed for drilling, manual micro-feed for milling3 automatic quill feeds5. for horizontal spindle operations, the top beam including head can be completely rotated on the stand6. adjustable ground dovetail guideways on the X-axis and wide square guideways on Y7. clamping device in all 3 axes8. adjustable stops for drilling depth and table adjustment9.worktable swivel +-45 standard. Specification:model parameterXZ6350ZR Table size (mm)1270×320Table travel (mm)730/270/330Max. drilling dia.Φ30mm(cast Iron)Max. drilling dia. ( power feed)Φ10mm(Steel)     Φ14mm(cast Iron)Max. end milling dia.Φ25mmSpindle taperISO40Spindle speed steps 8 (V) 12 (H)Spindle speed range 90-2000 r.p.m. (V)   (50Hz)60-1350r.p.m. (H)Distance between vertical spindle axis and surface of column220mm-560mmDistance between vertical spindle nose and surface of table120mm-500mmDistance between horizontal spindle axis and surface of table10-340mm (H)Vertical spindle travel120mm (V)Motor2.2kW(V) 2.2 kW(H)0.75 kW (Feed motor)Overall size (mm)1680×1640×2200N.W.1650kgStandard Accessories:1.Drill chuck  Φ162.Inner hexagonal spanner 53.Wedge shifter4.Reduction sleeve ISO40/MT3,ISO40/MT25.Wrench S21-246.Spindle arbor7.Milling chuck  Φ4-Φ168.Horizontal milling arbor Φ22, Φ279.Draw bar  Optional Accessories:1.DRO2.Clamping kit 3.Rotary worktable 4.Universal dividing Head 5.Machine vice 6.CE 7.New Operation Panel 8.Hanging Operation panel
