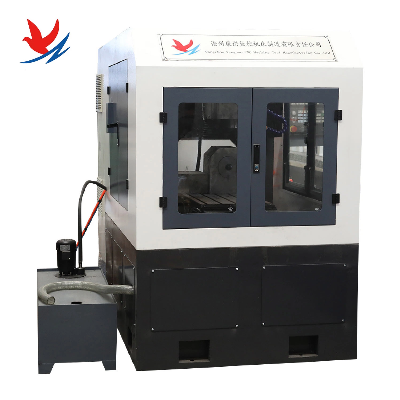

Forming Tool Grinder Cangzhou Connaught CNC Tool Grinder

Crm-315 CNC grinding machine is the leading variety developed by our company. It is specially designed for screw rotor manufacturing industry. Supporting knife sharpening machine tool.The cutter is designed to grind all kinds of curved surface contour cutter head (milling forming tool). The cutter can use a program to grind all the blade front and back angles of the cutter head at the same time.The machine tool adopts the special version software of the wide number numerical control system.First, the machine tool structure features:1. The machine tool adopts gantry structure (fixed beam moving table), and the headbox and tail seat are installed on the work table to support the tool body.The table reciprocates through the ball screw.2, the machine adopts ball linear guide rail, high positioning accuracy, fast moving reaction, low speed feed without crawling phenomenon and good stability.3, machine tool guide lubrication by centralized intermittent type special lubricating pump lubrication, lubrication in time.4, feed shaft [Z, X, Y axis] using high precision ball screw through a wide number of servo motor direct drive, high transmission accuracy, good positioning accuracy.5, the head of the C axis adopts wide number servo motor directly connected with high precision wear-resisting worm gear and worm pair (the worm gear and worm pair for clearance worm gear and worm, the backlash can be adjusted easily).6. The grinding wheel spindle is driven by electric spindle to achieve a stepless speed change.7, the machine is equipped with high pressure water pump, processing through forced cooling to achieve the cooling effect.8. The electrical components in the electrical control cabinet of the machine tool are all made of Deli brand.9. Machine tool is equipped with machine tool protective cover.  Machine structure and main technical parametersCRM315 CNC grinding machine structure and main technical parameters  projectcontentunitMachine tool useGrinding molding tool The length of the lathe bed1300mmBed width1200mmCutter diameterΦ 150 - Φ 315mmGrinding tool material Alloy tool superhard tool steel, etc Grinding head spindle power550 (ref)WGrinding head spindle speed2500-2800.r/minGrinding wheel materialCBN Number of servo control shaftsTool rotation (C axis) Beam (Y-axis) Slide platform down (Z axis) Workbench (X-axis) Numerical control systemWide number C-axis servo motor80SJT-M032C Y-axis servo motor130SJT-M100B  Z-axis servo motor 130SJT-MZ100B X axis servo motor130SJT-M150B X.Z.Y axis ball screw4005/3205domesticX.Z.Y axis rail typeBall guide rail X.Z.Y axis positioning accuracy0.015mmC shaft drive typeWorm gear and wormdomesticC-shaft transmission ratio1:60 C axis positioning accuracyAngle of 8 seconds  Cooling water pumpHigh pressure water pump Machine tool Outline dimensions1300 * 1200 * 1500 Machine weightMaterial 1.8Tons ofQ1,  How do I send my query?You can contact us via email, phone, instant messaging (WhatsApp, wechat, Skype). Q2,delivery timeThe project will be completed within 20 days after receiving the deposit. Please communicate with the sales staff about the specific construction period. Q3,Payment Terms30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.Q4,Can your engineers come to help us install and debug the machine? Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost. Q5, If I can't know how to operate. Can your engineer help me programme well on machine?Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.Q6,Is there only one model of this device?The standard processing diameter range of this equipment is 350mm, if you have other processing range, you can negotiate with the sales contact.  Length range, we can do from 1000mm to 8000mm, and all are integral cast bed. Q7,What control system does the equipment useOur standard configuration is Guangzhou CNC system, fanuc and Siemens can also be used, but the price is slightly different, please contact sales for details.If you don't know which model is suitable for your company, please tell us your requirements for the equipment, or you can send us the product drawings, and our engineers can help you choose the most suitable model for you. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
