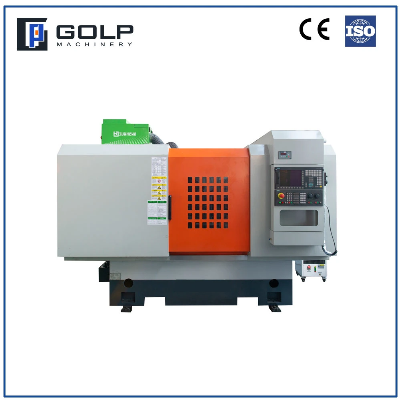

MKF2120 CNC Multifunction Grinding Machine Tool.Once Clamping, It Can Finish Internal, External, End Face Grinding.1. The machine tool is a three-axis (X feeding axis, Z1 grinding wheel axis, Z2 grinding wheel axis) two linkage CNC compound grinding machine, which is mainly used to grind the inner circular hole, inner conical hole, step hole, inner end face, outer circle and outer end face of the work piece. The grinding cycle is completed automatically (with automatic feed, withdrawal, rough grinding and fine grinding); Automatic dressing of grinding wheel, automatic compensation, etc).2. The machine tool adopts the structural mode of work piece box do the forward and backward feeding movement and worktable (grinding wheel frame) do the left-right movement. The guide rails of worktable and grinding wheel frame are rolling linear guide rails, which are driven by servo motor. The rotation speed of work piece spindle and grinding wheel spindle are controlled by frequency converter to realize stepless speed regulation.The work piece clamping is a hydraulic power chuck, and other matching fixtures can be configured according to the particularity of the user's work piece.3. The machine tool is a fully enclosed protective cover, with a front rotary operation box and a rear backpack electrical cabinet.1ID grinding scope20-200mm2Max. Grinding depth200mm3Max. Grinding OD scope30-300mm4Max. Grinding length200mm5Motor power of work piece2.2( KW)6Servo motor power of X axis11(NM)7Z1,Z2 axis servo motor power11(NM )8Motor power of grinding wheel 14(KW)9Motor power of grinding wheel 27-22( Kw)10Motor rotating speed of grinding wheel 12800(r/min)stepless speed regulation11Motor rotating speed of grinding wheel 21000--24000(r/min)Stepless speed regulation12Work piece rotating speed0-600(r/min)Stepless speed regulation13Positioning accuracy of X Z1 Z2 axis5 ( um )14Repeat positioning accuracy of X Z1 Z2 axis2 ( um )15Max. Stroke of X axis550 ( mm )16Max. Stroke of Z1 Z2 axis450 ( mm )17Max. Moving speed of X axis10 ( m/min)18Max. Moving speed of Z1 Z2 axis10 ( m/min)19Size of machine tool3000 x2800 x 2700( mm )20Weight of machine tool6800(KG)21Rated power(about)28(KW)Processing accuracy1ID/OD roundness2( um )2ID/OD cylindricitiy3 ( um )3ID/OD concentricity3 ( um )4Surface roughness of ID/ODRa0.4 ( um )5Perpendicularity of inner hole, outer circle and end face4 (um ) WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.Q:What's your payment terms?A:T/T,L/C,Paypal,Western Union etc.Q:How long is the product warranty?A: 24 monthsQ:What are your normal lead times?A: Normally, 30 to 60 daysQ:What kind of package do you offer?A: Standard wooden case packingQ:How about the installation and commissioning?A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.Q: Are you a trading company or a manufacturer?A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation. Q: What kind of product certification do you have?A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.Q: Do you have after sales service?A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.Q: Do you test all your goods before delivery?A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
