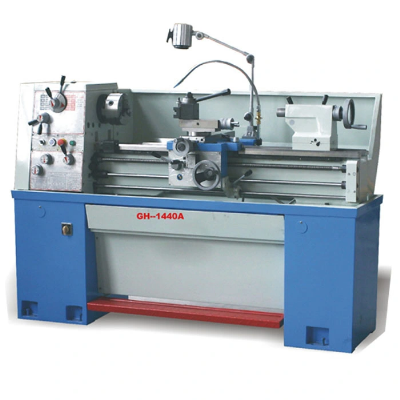

China Horizontal Manual Metal Lathe Machine (GH-1440A)

China Horizontal manual metal Lathe Machine (GH-1440A)Features: Precision ground and supersonic frequency hardened bed ways. The lathe machine spindle is supported with precision roller bearing;  Headstock gears are made of high quality steel, ground and hardened; Removable gap is provided for larger diameter work; Easy operating gear box has various feeds and thread cutting function Specifications: Model GH1440AMax.Swing.over bedmmΦ356(14')Max.Swing.over cross slidemmΦ220(8-5/8')Max.Swing.over gapmmΦ506(20')Bed widthmm206(8')Max.Distance between centersmm1000(40')Taper of spindle bore MT#5Diameter of spindle boremmΦ38(1-1/2')Steps of spindle speeds 16stepsRange of spindle speedsr/min45-1800rpmSpindle nose D-4Metric thread rangemm0.45-7.5(22kinds)Inch screw thread rangeTPI4-112(40kinds)Range of longitudinal feedsmm0.03-0.688(0.0011-0.0271'in/rev)Range of cross feedsmm0.015-0.220(0.0003-0.01'in/rev)Diameter of leadscrewmmΦ22(7/8')Pitch of leadscrewmm4(8T.P.I)Travel of tailstock quillmm120(4-3/4')Diameter of tailstock quillmmΦ45(1-25/32')Taper of tailstock quill MT#3Main motor powerKw1.5/2.4Packing size of lathe(LxWxH)mm1900 x760 x1460Net Weight/Gross WeightKg960/875  Standard accessories:3-Jaw chuck4-Jaw chuckSplash guardWork lightCoolant systemFoot brakeFace plateSteady restFollow restOperation manual  Optional accessories:DROQucik change tool postWhat about the spare part if the machine break down?  ==about the machine break down, normally our policy will be as the under way 1) Our quality guarantee time is 12 months since the machine on board  2) During this period, if the machine break down owing our machine itself quality problem,  we will prepare the spare parts and send to you by free within 5 days. all these will be by free.  3) If the break down is caused by the mis operation,  we of course will supply you the spare parts, but we have to charge you the costs prices.       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
