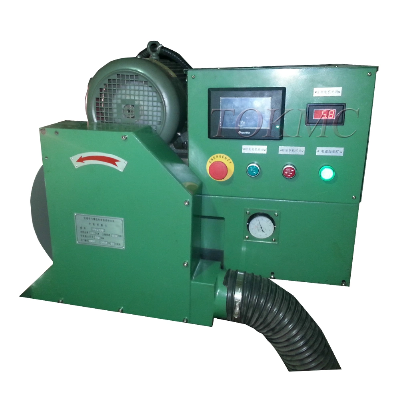

PLC Crowning Grinding Attachment (grinder for lathe rubber roller)

Grinder for universal Lathe Application :This grinding head is an attachment to horizontal manual lathe. It adopts numerical control for profile curve grinding to obtain crowning curves, and symmetric on the middle point, which is ideal profile for rubber roller profile crowning.Material of roll includes rubber, PU, silicon resin, plastic, and fibre roller. It is widely used for papermaking, printing, textile industries, etc.On any horizontal lathe, it can be installed directly with adapter we supply.it is easy to use:1) select type of curve2) input length to cut3) input height of crown4) input speed of lathe feed rate (spindle speed rpm x carriage feed rate mm/r)5) StartGrinding wheel size Φ250/350/500 available for your choice -- see attached brochure.Feature :This machine adopts numerical control for profile curve grinding to obtain crowning curves, and symmetric on the middle point, which is ideal profile for rubber roller profile crowning. l A few types of profiles can be done as follows. 1. Sine curve crowning grinding, suitable for grinding soft material rubber roller (Hardness Shore A < 65°) 2. Circle arc crowning grinding, suitable for grinding middle hardness rubber roller (Hardness Shore A about 75°) 3. Parabolic curve crowning grinding, suitable for grinding harder rubber roller (Hardness Shore A about 85°) 4. Hardest curve crowning grinding, suitable for grinding hardest rubber roller (Hardness Shore A > 90°) 5. Concave crowning grinding 6. Tapers (conic) grinding 7. Cylindrical surface grinding l The material of roller: Rubber, PU, silicon resin, plastic, metal, and fibre roller l Lathe applicable: On any horizontal lathe, it can be installed without adaptor directly.SpecificationTOK250TOK300TOK350TOK500Grinding typeConvex crownConcave crownTaper endsCylinderCrown height       mm0.01-80.01-80.01-80.01-8Spindle typeBearingBearing Bearing BearingSpindle diameter    mm35355070Spindle speed      rpm2145178015281070Wheel linear velocity m/s28282828Motor power        kw2.245.57.5Wheel size 250x32x75300x40x75350x40x127500x50x203Weight             kg140200270430Size LxWxH         mm630x450x455650x525x550710x600x619770x740x683  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
