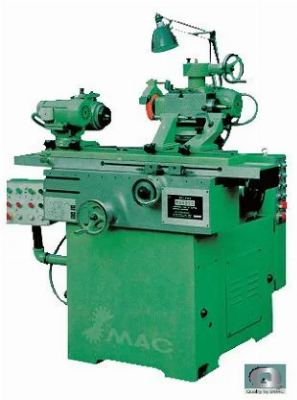

Universal Cutter & Tool Grinding Machine (TGA25)

The series machine are specially suitable for sharp-ening tools in HSS, tungsten carbide and other Materials, also for cylindrical, surface, slot and profile grinding work. By using additional attachment, You greatly extend the range of application of there machinery and can solve individual machining problems, such as griniding of various hobs, for tools, spherical cutters, twist drills and steep taper reamers, etc. The series machine wheelhead with two-dimensional setting(except MA6025B), workheand stock swiv- Els with double dir., And supplied with ISO-50 taper hole. Worktable is supported iin preloaded ball guide And can be driven by hand or by infinitely changing rate hydraulic Optional Accessories Hob cutter grinding attachment 1 set Blow wheel and cutter gauge dresser 1 set Drill grinding attachment 1 set Circulary permanent-magnetic chuck 1 set Dust extractor 1 set Extended grinding wheel spindle 1 set Cylinder center spindle 1 piece Worktable longitudinal digital display unit 1 set Grinding attachment for special cutters 1 set Universal grindng head 1 set Dividing plates 5 piece Universal wheel dresser 1 set Three-jaw chuck 1 set Universal rectangular permanent-magnetic chuck 1 set Web grinding equipment 1 set Spring collet chuck 14 piece Worktable micro-feeding mechanism 1 set Double end side wheel dresser 1 set Precision wheel dresser 1 set SpecificationModelUnit1400114002140031400414005MA6025 MA6025BMYA6025MGA6025BMGYA6025BMQ6025ADistance between left tailstock and right tailstock centersmm650650Max. Workpiece diametermm250250Height of centersmm130125Max. length for cylindrical grindingmm270270Work table travel by handmm400500Swivel range of table to either side +450+600Work table travel by hydraulically  400mm 400mm Vertical/Cross slide travelmm230/250230/250Max./Min distance between table Surface and grinding spindlemm298/4850/280Horizontal swivel range of wheelhead 36003600Max/Min grinding spindle inclinable +150(exclud MA6025B)+150Grinding spindle speedrpm2700,4000,55003000Total powerkw3.15KW1.43Overall dimensionsmm1340x1320x13201480x1102x1215Gross Weight/Net Weightkg11001150115012501000Linearitymm0.0050.0030.005Roughnessum0.630.320.63  Company ProfileCertificationsExhibitionCustomer Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
