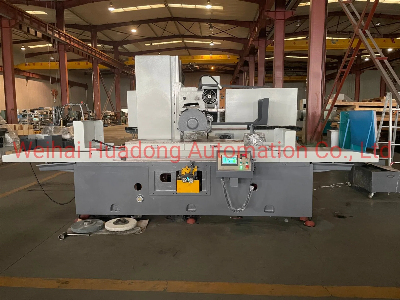

CE Standard PLC Controller Wheel Head Moving Surface Grinding Machine

1.Machine Features1. The overall structure of the machine adopts T-shaped layout, the grinding head body moves forward and backward along the pallet guide rail (Z axis), the pallet moves up and down along the column guide rail (Y axis), the table moves about along the bed guide rail (X axis), and the spindle rotates clockwise.2. The machine bed is a box structure, the internal reinforcement layout is reasonable, so that its strength is high and stability is good. The working table moves along the guide rail of the bed and can carry out stepless speed regulation.3. The column is installed on the bed body, and a drag plate is arranged on the guide rail of the column. The annular gear ring mechanism with vertical feed is installed in the middle of the guide rail, which has high transmission accuracy, good interchangeability and convenient maintenance. The center error between the lead screw and the reducer shaft can be compensated by the cross joint in the transmission process.4. Spindle bearing adopts bobbin structure, strong impact resistance, can be used for heavy duty grinding.5. The horizontal movement of grinding head is hydraulic and manual, which is easy to operate. The vertical movement of the grinding head can be carried out in two ways: quick lifting and manual feeding, which is convenient and accurate.6. The cooling water tank adopts funnel precipitation separation structure, which is beneficial to improve the surface quality of grinding.7. Each guide rail adopts forced lubrication mode to ensure that the guide rail works under the protection of oil film and prolong the service life of machine tool.2.Details parametersM71 series parametersSpecificationsM7130AM7140M7150AM7160M7170M7180Max.longitudinal travelmm1100110017002300110017002300110017002300135017002300170023003100Min.longitudinal travelmm200200200200200200Max. distance from spindlecenter to table mm580Longitudinal feedm/min7~23Table T slot No.*widthmm3*183*22Cross feed continnuous  feedm/min0.5-4.5Cross feed intermittent speedmm/t990Cross feed Manual feed mm/div3-30Wheel head vertical moving Rapid feedmm/min400Wheel head vertical moving Manual feedmm/gra.0.005Wheel head per revolution feed of handwheelmm/rev.0.6450.5150.6450.5150.515wheel Speed Rpm1440 wheel sizemm400×40×127400*40*203400*40*127400*50*203450*63*203Spindle motorKw7.57.57.51115total rated powerKW111112.2513.7519.7528.75Max. table load (include chuck)Kg47063010013807001240141085011501500110014001800160020003000Gross weightKg35004706600800050007100850050006900810056006600720095001100013000  3.standard accessoriesOptional accessories you can chooseCertificates Top view of surface grinder workshop Our Advantages1.Factory direct sales, product quality and after-sale can be effectively guaranteed2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from themAfter Sales Service1. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.2. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.3. Provide spare parts and spare parts at preferential prices for a long time.4.the warranty is one year after machine out of our company.Exhibitions/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
