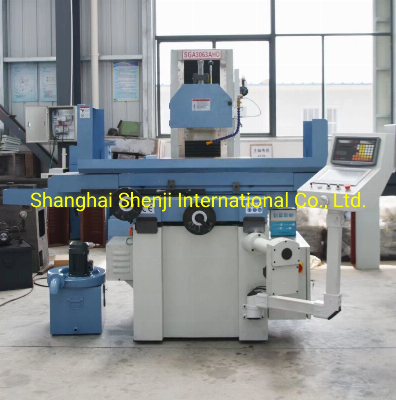

SGA2550AHR High Precision Electric Surface Grinder for Sale

SGA2550AHR Surface Grinding Machine Factory Directly Sale Hot SaleApplication:AH--left and right hydraulic, front and rear automatic, up and down manualAHR--left and right hydraulic, front and rear automatic, up and down electricAHD--left and right hydraulic, front and rear automatic. Up and down PLC servo controlStructureThe main iron castings are used advanced material, and through annoaling. eliminate stress.to ensure the high precision, high rigidity. and prolong the life of the machine.SlideGrinding machine and double v slide adhesive wear resistant resin TURCITE-B (Teflon), andwith the precision scraping. not only the sliding smoothly and wearresistance, the most suitablefor torm grindingSpindleUsing single type integrated design of spindie directly and P4 grade ultra precision bevel rollerbearing. rotating in high speed, low noise. no vibration, large torque, suitable for heavy cuttingand all kinds of form grinding.Automatic lubrication systemAdopting circulation type automatic lubrication system, when the spindle starts. lubricatingoil automatic cycle provideslubrication for each screw and slide, can greatly reduce the slidewear. A mirror can watch case oil lubricating machine column above.The SGA3063,SGA40100 Hydraulic Saddle Moving Surface Grinder machine with pleasing appearance and well designed structure, the machine is an indeed precision grind equipment for metal working.The well designed structure have good rigidity and keep the machine with high accuracy.Well designed and carefully assembled Hydraulic unit make the table moves smoothly. The oil temperature increase low after long working.MODELUnitSG2050H/AHSGA2550AHSGA3063AHSGA30100AHSGA4080AHSGA40100AHSG2050AHRSGA2550AHRSGA3063AHRSGA30100AHRSGA4080AHRSGA40100AHRSG2050AHDSGA2550AHDSGA3063AHDSGA30100AHDSGA4080AHDSGA40100AHDTable size(W x L)mm200x460250x500305x635305x1020406x813406x1020Max longitudinal travelmm51056076511309101130Max cross travelmm238275340340450450Max distance from spindle center to tablemm450450580580580580Electro magnetic chuck sizemm200x460250x500300x600300x1000400x800400x1000Speed of table longitudinal movementm/min7-23Table transverse movementAuto feedmm/min0.1-8Rapid speedmm/min990Feed of handwheelMm/div0.02Wheelhead vertical movementAuto feedmm(H/AH/AHR model)/0.005/0.01/0.02/0.03/0.04/0.05(Only for AHD model)Rapid speedMm/min(H/AH model)  /460(for AHR model)(H/AH model)  /460( Only for AHR/AHD model)Feed of handwheelMm/div0.005GrindingwheelSpeed rpm2850(50Hz)  3450(60Hz)1450(50Hz)  1750(60Hz)Sizemm200x20x31.75350x40x127Spindle motorkw1.52.25.5Hydraulic motorkw0.752.2Cooling pump motorkw0.040.125Elevating motorkw(AH mode)  0.25(AHR mode)  0.5(AHD mode, servo motor)Cross feed motorkw0.04Max loading capacity of tableKg120180270400500600Total rated powerkw333.79Height of machinemm16751890Floor space(LxW)mm2050x14002300x16002900x22004400x22003600x24004400x2400Gross weightkg160018002900330035004000Package dimensions(L x W x H)mm1900x1720x21752000x2100x21752350x2220x21502950x2220x22102850x2270x21802950x2270x2210The slide way with the TF wearable belt, and have been precision manual scraped. Only by this, the machine have high accuracy and smooth moving and long working life.Double wall structure casting is adopted on Column. And between outside and inside wall gets strengthen rib.Siemens PLC (only for AHD model)For AHD model, the spindle elevating motor adopt Servo motor we choose Delta, and controlled by Siemens PLC. All the electro parts adopted world brand or Chinese famous brand, such as the Siemens, Schneider, Tend, etc.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
