Universal Cylindrical Grinding Machine M1350/3000

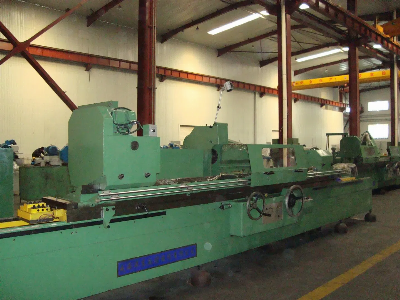

Structure The left and right guide rail adopts P-V structure which is scraped by high precison manual ,so that the whole system products have high precision and high stabilityThe front and rear feed guide rail of grinding .Wheel can choose  roller and wire rail stucture Chassic control mechanism ,simple ,safe and reliable .M1350 series worktable and grinding wheel guide rail adopts high stable hydrostatic guide rail,high rigid dynamic and static pressure spindle Specification Description UnitM1350/3000Max.length ground (O.D)mm3000Center height 270Dia.Ground O.D)mm25-500Max.workpiece weightkg2000Workhead  Center taperMTMT6Spindle speed r/min50HZ :10-100Wheelhead Max.diemension of wheel(OD*W*ID)mm750*75*305Wheel peripheral velocitym/s35Hand.feed per .revmmrough:4  fine :0.5Hand feed per grammrough:0.02,fine:0.0025Table  Max.swiveling angle of table °Clockwise:2°Anficlockwise:3°Longitudinal speed range of talbe m/min0.1-3Tailstock  Center taper MTMT4Quill travelmm70Motor  Wheelhead motor powerKW15Workhead motor powerKW4Machining accuracy Roundnessum5Cylindicityum10RoughnessumRa0.32Machine  Gross weightT13TPacking dimensioncm796*225*210cmMachine Photos   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
