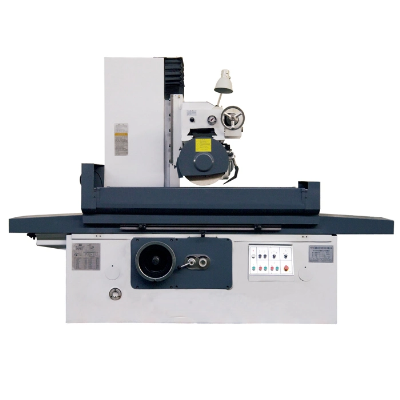

Surface Grinding Machine with Wheel Head Moving

surface grinding machine with wheel head movingMAIN FEATURES1.Wheel Head moving, Horizontal spindle,  suitable for heavy-duty cutting2.Grind wheel head spindle front end adopts shell bear bearing support, rear end adopts Roller bearing, with high rigidity, specially for heavy-duty cutting. 3.Transmission: Worktable adopts one flat and one V  guide ways, driven by hydraulic with smooth movement.  4.Grinding wheel adopts two sets of guide way, one is flat guide way for up/down moving. Another set is swallow tail guide way for back-forward movements, with manual feeding orAuto-feeding by hydraulic cylinder. 5.the M7130AL,M7140A,M7150A,M7163 series surface grinder adopts the cooler for hydraulic oil tank.The temperature of the oil tank raises little so the thermal distortion of the machine is small.6. Full lubrication system ensuring all guide ways smooth moving.ModelUnitM7140M7140AM7140AM7140Ax1600x2200Worktable size(WxL)mm400x1000400x1000400x1600400x2200Max.machining dimension(WxL)mm400x1000400x1000400x1600400x2200Max.distance between spindle center line and worktable surfacemm575600Longitudinal moving speed of worktablem/min5-255-25T-slot number*Wmm3x18Wheel head Consecutive feed speedm/min0.5-4.5cross movingIntermittent feed speedmm/t3-30 Vertical moving of wheel headHand wheel feedmm 0.02Rapid speedmm/min400 Hand wheel feedmm/gra0.01Wheel head motorPowerkw5.57.5Rotation speedrpm1440Total powerkw91113.513.5Max.loading capacity of worktable (with chuck)kg62010001380Chuck size(WxL)mm400x1000400x1000400x800400X1000x1x1x2X2Wheel size (OD*W*ID)mm350x40x127400x40x127Packing size(LxWxH)cm295x220x223320x220x233500x200x233680x220x233Machine weightkg4700501065107600Standard Accessories 1.Wheel flange2.Balancing arbor3.Wheel exactor 4.Coolant tank 5.Working lamp 6.Tool box and tools 7.Wheel dresser stand not include diamond pen,8.Standard grinding wheel9.Leveling wedge and bolt10.Standard electro magnetic chuck,Optional Acessories Magnetic chuckBalance standWheel flangeCoolant with magnetic separator and paper filterParallel wheel dresser screw rod typeIf you are interestd in this type surface grinding machine,pls do not hesitage to contact me.TENGZHOU UNI-TECH CO.,LTDTEL: 86-632-5810219    FAX:86-632-5810216  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
