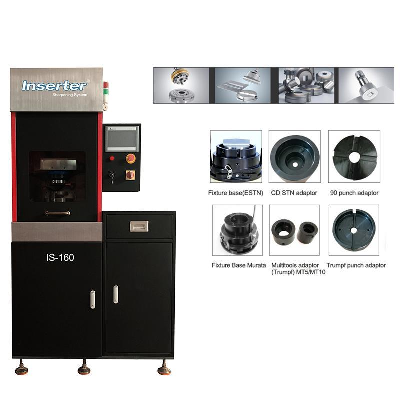

Universal Fixture Accommodates Virtually All Tooling Styles Punch Die Grinder

Main Feature:01. Automatic sharpening(Automatic tool setting, automatic removal).02. PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.03. Grinding accuracy: flatness±0.01MM.04. The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening.05. Automatic lubrication system.06. Automatic cooling system(Prevent tool grinding and annealing).07. Automatic liquid level detection system(Automatically alarm and stop when the coolant is lacking to prevent tool grinding and annealing).08. Automatic filtration system(Filter cotton can be washed and reused).09. Safety door protection and alarm function.10. Grinding overload protection system.11. Spindle upper limit alarm function.12. Emergency stop alarm function.13. Interrupt return function.14. Exhause system helps trap remaining swarf.Parameter:NameIS-160Power of Main Motor2.2KW, 2840 RPMMotor of Rotating Table0.100KW, 1440 RPMServo Motor0.75KWCooling Motor0.045KWMaximum Grinding Diameter160mmMaximum Grinding Stroke200mmThe Diameter of Grinding Wheel135mmMinimum step0.01mmMeasurement of machine(L x W x H)820X1020X1850mmWeight of Machine650KGFAQ1.How many models of grinding machine are there?A: We have 3 models. RG-160;WG-150;IS-160 2.Which brands of molds are suitable for?A: Suitable for Amada,Murata and Trumph. 3.How can I choose the right fixture?A: As each brand has different mold sizes, you can contact us. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
