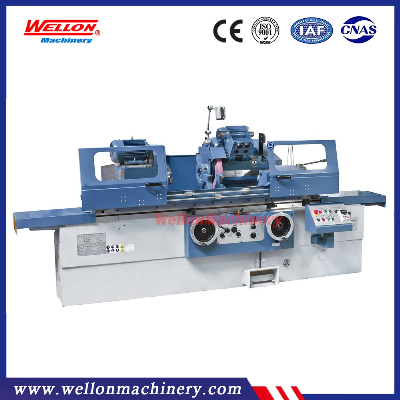

High Precision Universal Cylindrical Grinding Machine M1432B

High Precision Universal Cylindrical Grinding Machine M1432BPerformence Features:1. When conical grinding, the table can be swiveled to either side and exactly positioned by using the scale2. Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by hand wheel8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement9. Hydraulic or manual repositioning of grinding spindle stock10.Guide ways in x- and y-axis are precisely constructed and hand-polished11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guideTechnical parameter:MODELUNITM1432B×1500General capacity Distance between centersmm1500Center heightmm180Dia.Ground(O.D)mm8~320Dia.Ground(I.D)mm30~100Max.length ground(O.D)mm1500Max.length ground(I.D)mm125Max weight of work piecekg150Work head Swiveling angle +90Center taperMT4Spindle speedr/min50HZ:25-220 60HZ:30-364Wheelhead Wheel spindle speedr/min1670Wheelhead rapid travelmm50Max travelmm246Swiveling angle°±30°Hand feed per.revmmrough:2.0 fine:0.5Hand feed per.grammrough:0.01 fine:0.0025Max dimension of wheelmm400×50×203Internal grinding Spindle speedr/min10000/15000Dimension of wheelmmmax:50×25×13 min:17×20×6Table Hand feed per rev.mm6Max swivelling angle of table°clockwise:3° widdershins:6°Longitudinal traverse speed of tablem/min0.1~4Tail stock Center taperMT4Quill travelmm30Motor Wheelhead motor powerKw5.5Internal grindingKw1.1Power of workhead motorKw1.5Machine Gross weighKg6100Packing dimensioncm422×200×205Standard accessories:3 jaw chuckBalance arborMeasuring bridge plateWheel flangeOpen type steady restAlloy centersExtent arborDog poleDog armTable swivel wrenchCoolant tankStandard wheelsWheel extractorWork lampSeal ringsHigh speed strapMultiple V beltInternal wheelsOptional accessories:Wheel balancing standMagnetic separatorClose type steady restEnd wheel dresserRadial wheel dresserCompany Information:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
