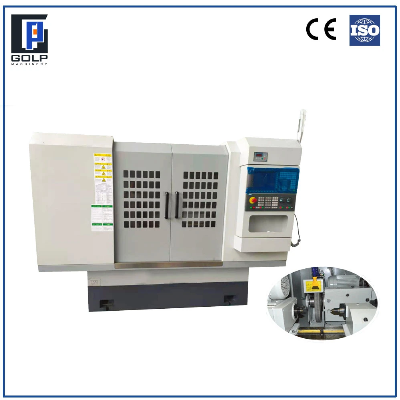

Mk1320 CNC Grinder Cylindrical Grinding Machine for Mod. 200mm

Δ. CNC cylindrical grinding machines are pre-programmed according to the processing requirements and are processed by numerical information commands from the control system, and are mainly used for grinding cylindrical and conical external surfaces. CNC cylindrical grinding machines are generally characterized by a high degree of versatility and modularity, high precision, high rigidity, high efficiency and high adaptability.Δ. Depending on the type of CNC cylindrical grinding machines, they are suitable for batch processing of parts related to the automotive, motorcycle, air compressor, bearing, aviation, aerospace and other industries. 1. The machine tool is a two axis (x-axis is transverse feeding of grinding wheel frame and z-axis is longitudinal movement of worktable two linkage CNC cylindrical grinding machine. The CNC system adopts international or domestic well-known brands. it has the functions of automatic feed, withdrawal, rough grinding, fine grinding, dressing of grinding wheel, automatic compensation and so on. With optional automatic measuring instrument, it can realize the full closed-loop function of grinding cycle.2. The grinding wheel spindle adopts sleeve type or dynamic and static pressure spindle, the grinding wheel frame quide rail adopts steequide rail, the worktable quide rail adopts Flat-V plastic lubrication guide rail, and the servo motor ball screw is used to drive the feed mechanism and the worktable to move.3. The main body of the machine tool is cast by cast iron, with a fully enclosed protective cover, a backpack type electrical cabinet in the rear and a rotary operation screen in the front.NameLength300mm500mm750mmGrinding OD scope6-200mmTop center height125mmLongitudinal movement distance of worktable350mm550mm800mmRotating angle of worktable+4,-3°Moving distance of grinding wheel frame150mmTaper of head and tail frame topsMorse No.4Chuck diameter of head frame125mmMove amount of tail frame sleeve25mmMax.Size of grinding wheel400*20- 50*203mmServo motor power of X axis11nmServo motor power of Z axis11nmPositioning accuracy of X/Z axis5umRepeat positioning accuracy of X/Z axis2umMotor power of grinding wheel4kwTotalpower of machine tool11.5kwWeight of machine tool2300kg2800kg3300kgSize of machine tool(mm)2300*2200*25002800*2300*25003300*2300*2500Processing accuracy(standard specimen) Roundness0.0015mmCylindricity0.003mmSurface roughnessRa0.32um  WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry.  The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.Q:What's your payment terms?A:T/T,L/C,Paypal,Western Union etc.Q:How long is the product warranty?A: 24 monthsQ: Are you a trading company or a manufacturer?A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.  Q: What kind of product certification do you have?A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.Q: Do you have after sales service?A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.Q: Do you test all your goods before delivery?A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
